VoiSona

MANUAL

Learn How to Use VoiSona.

How to Install and Set Up

Installation

To install VoiSona, connect your PC to the Internet and follow the steps below.
Download the latest version of VoiSona from the Download page.
(To update VoiSona, follow the same procedures as installation.)

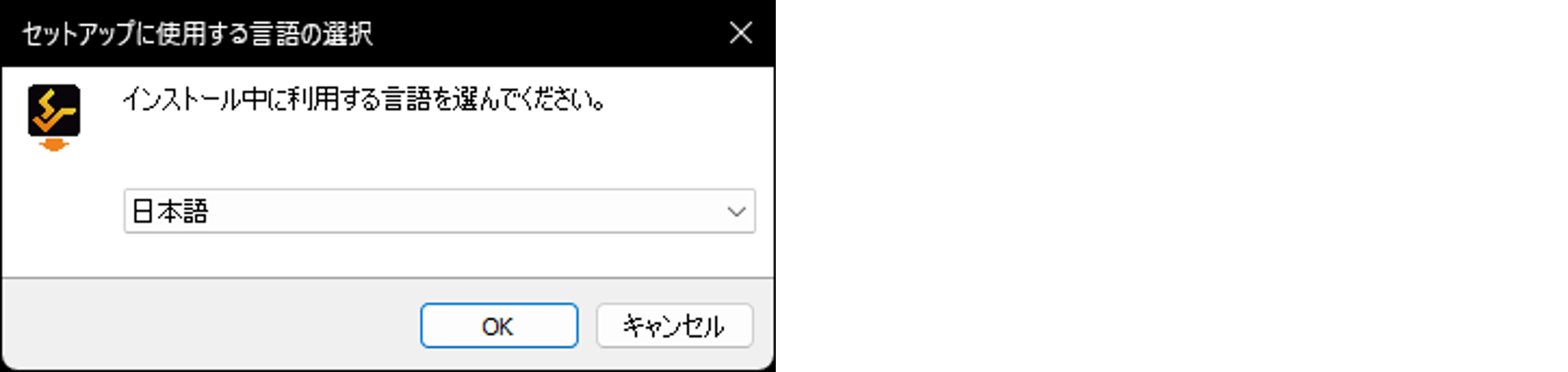

Choose the installation language and click OK.

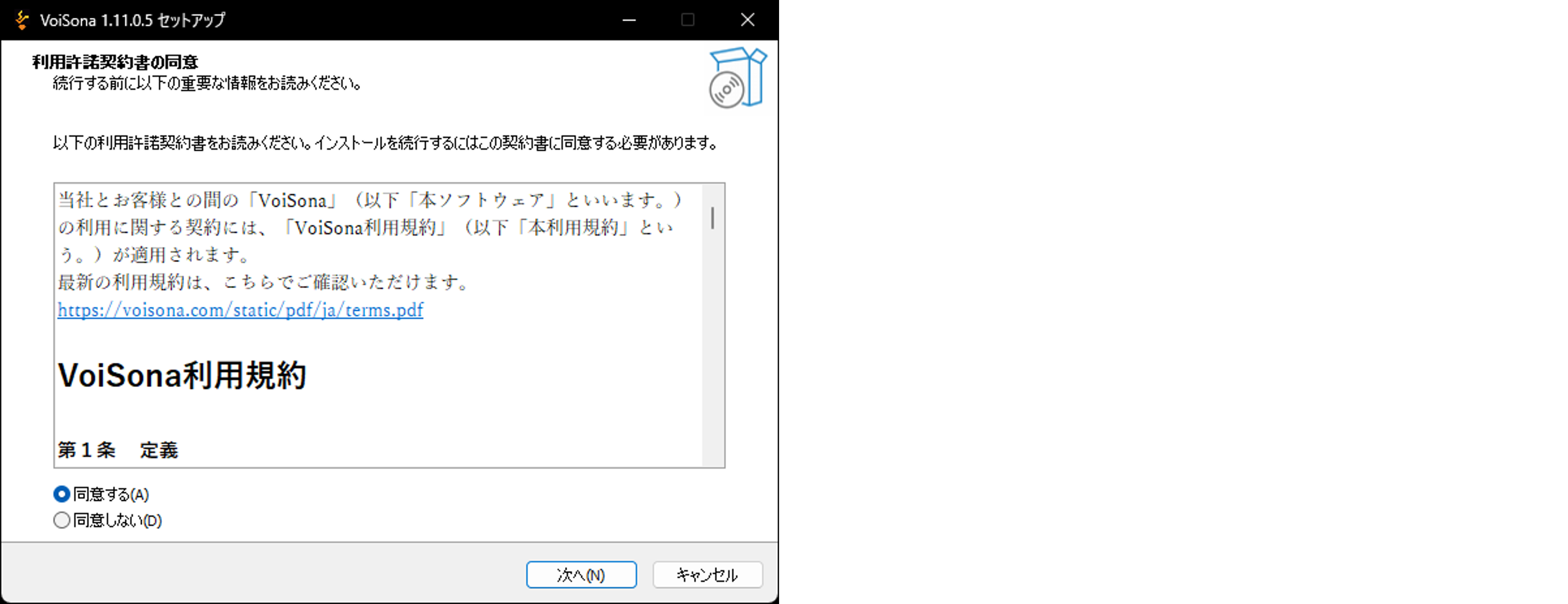

Read the Terms of Use and Privacy Policy. If you agree, choose I agree and click Next.

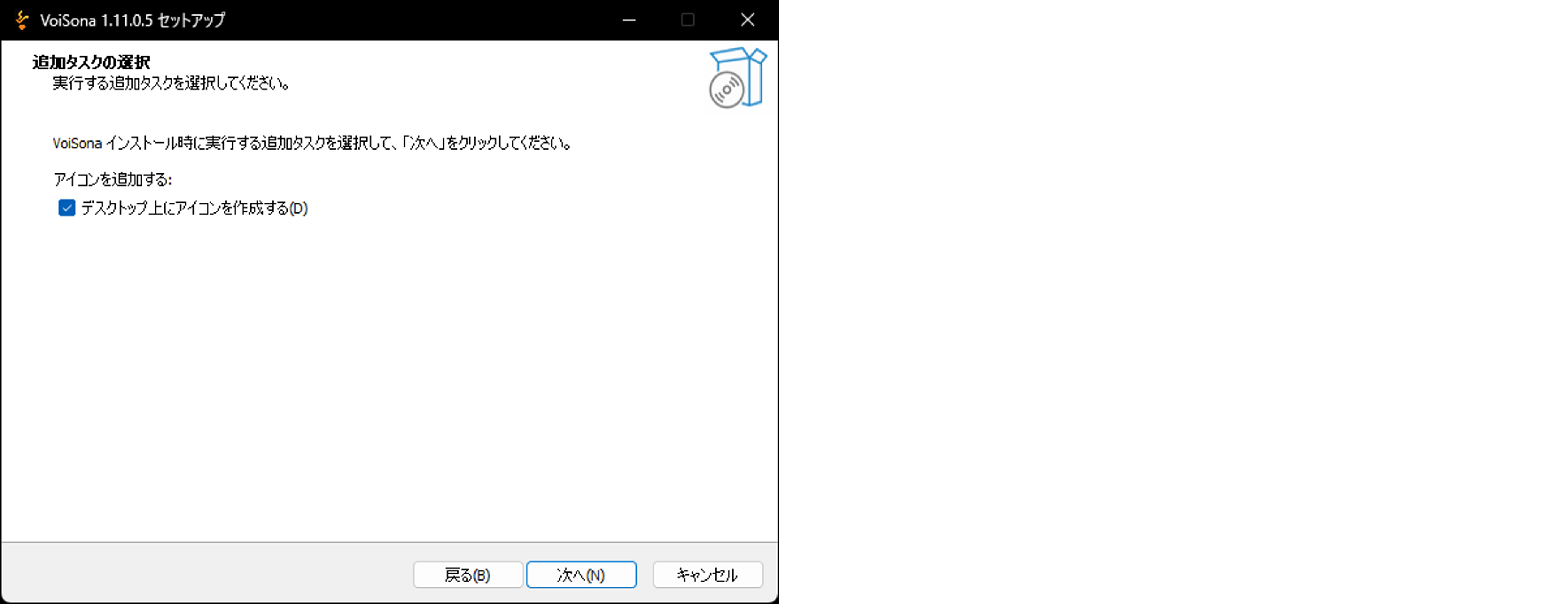

Click Next.

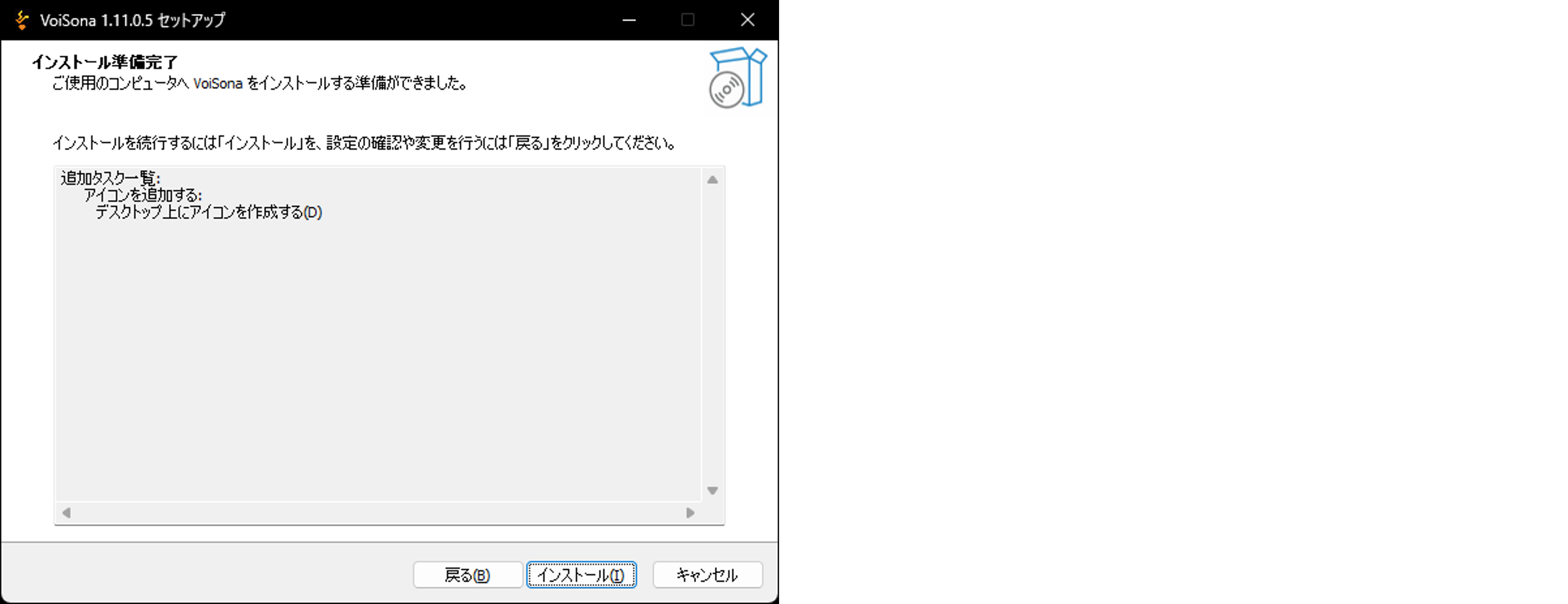

Click Install.

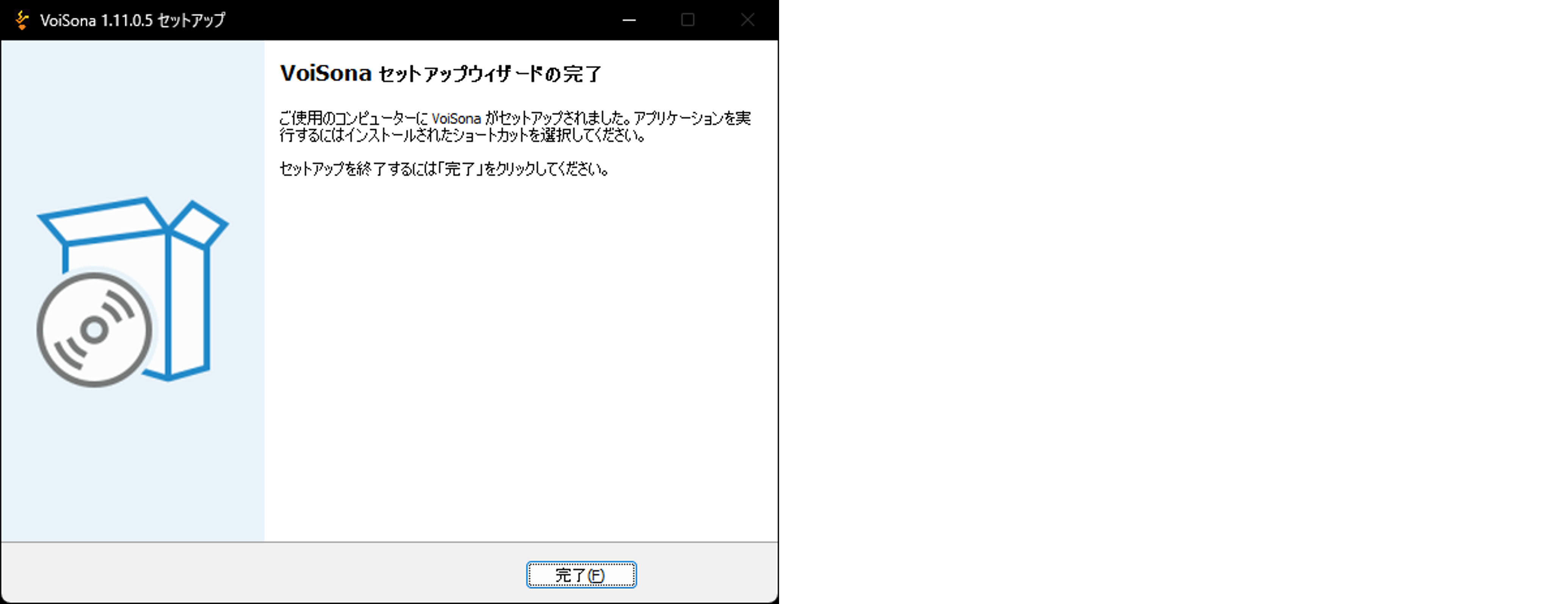

Restart the computer to complete the installation. Click Finish.

Using VoiSona as Instrument Plug-in

You can use VoiSona on a Digital Audio Workstation (DAW) as a VST instrument (VSTi) plug-inor an Audio Units (AU) plug-in.
As an example, we will explain how to use VoiSona as a VSTi plug-in on Cubase AI.

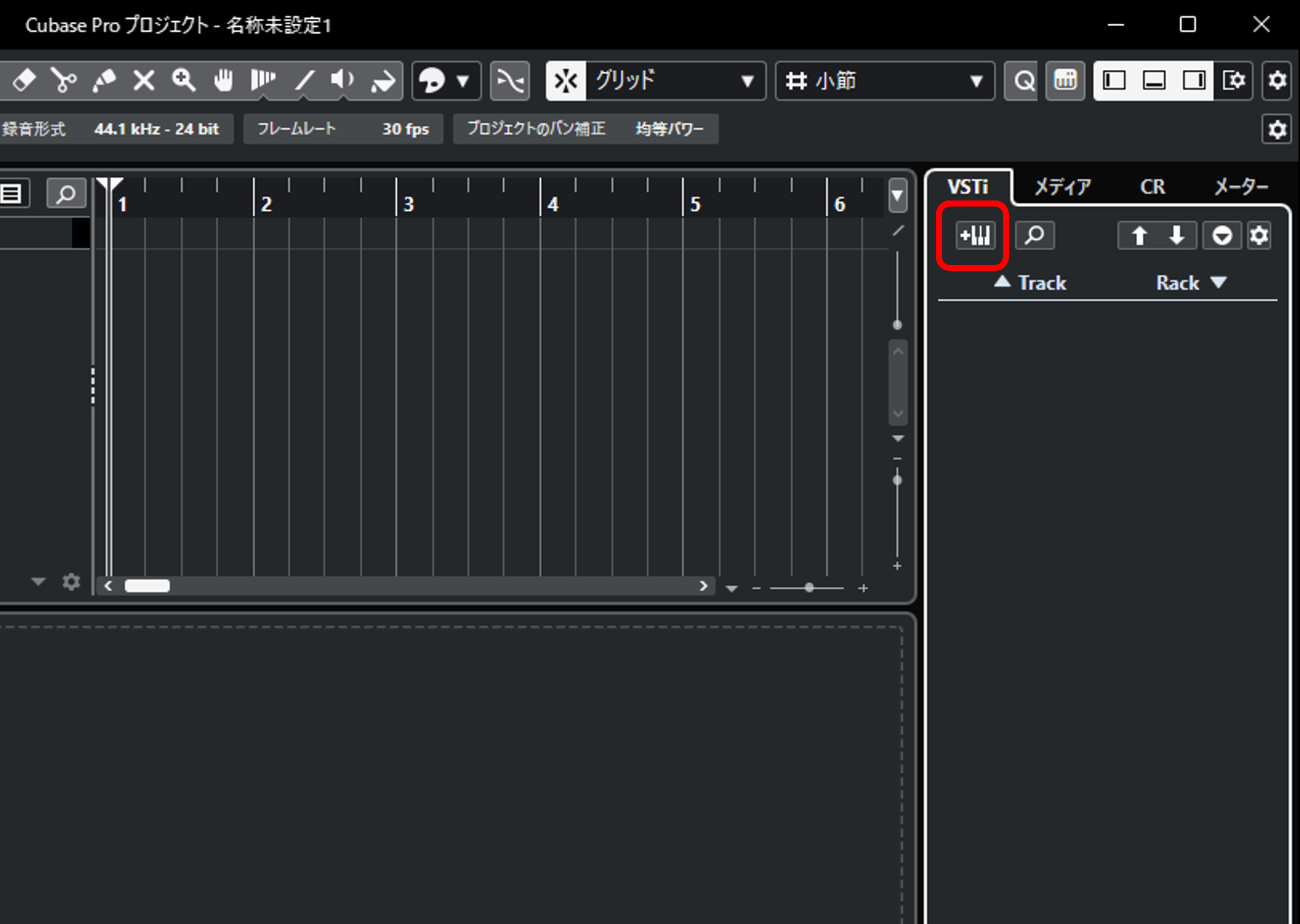

First, launch Cubase AI. Next, click the Add Track Instrument icon.

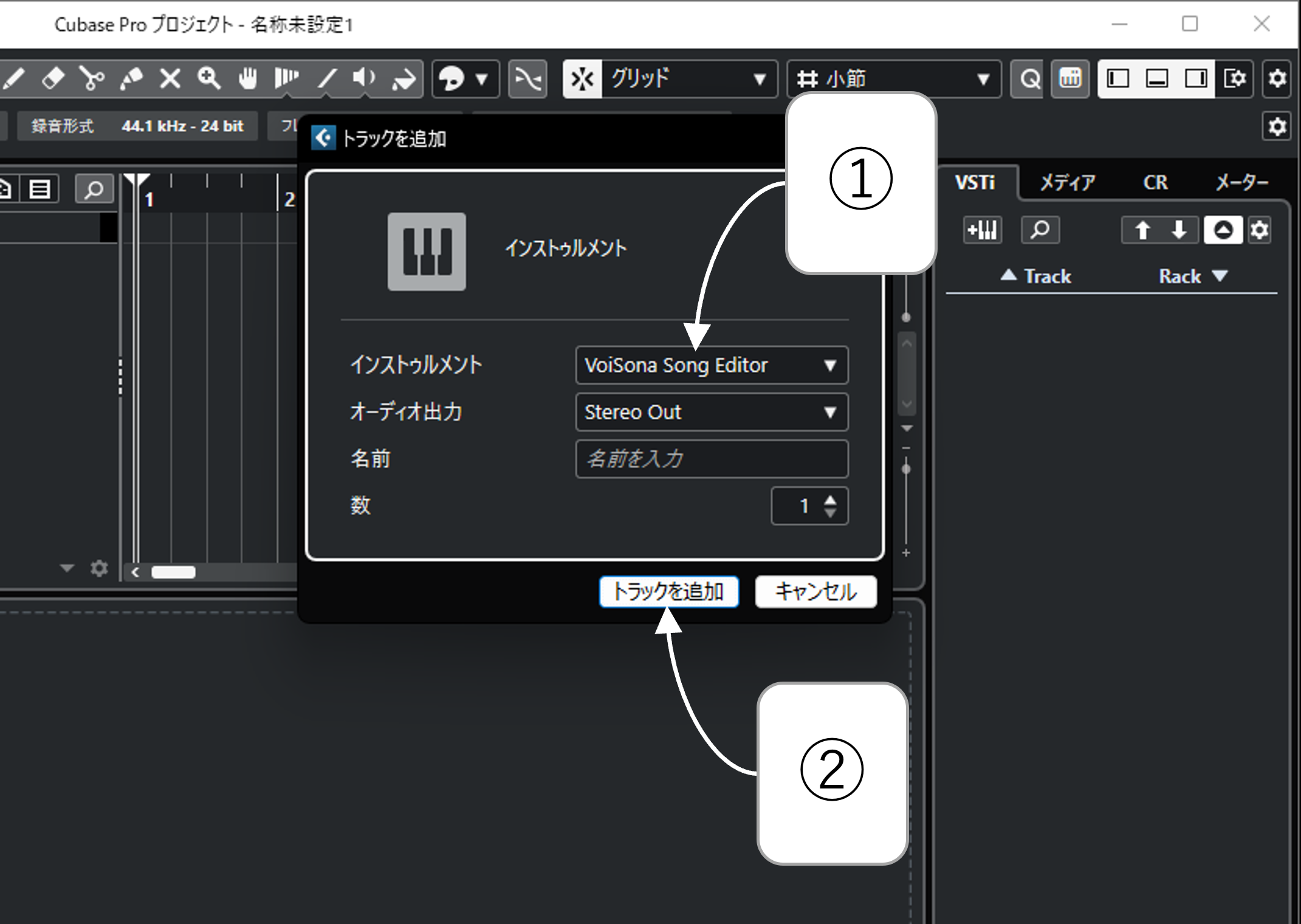

From the Instrument pull-down, select VoiSona Song Editor.

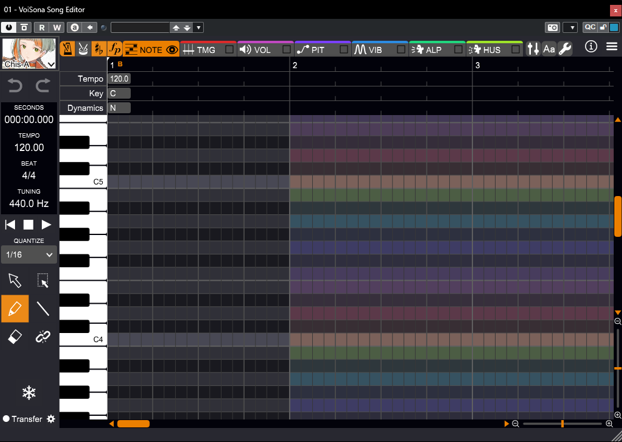

Click Add Track. The VoiSona Song Editor window is displayed.

Using VoiSona as Effect Plug-in

You can also use VoiSona on DAW as a VST or Audio Units (AU) effects plug-in.
(These features are currently in test function. They are available only to current subscribers of paid libraries.)
As an example, we will explain how to use VoiSona as a VST effects (VSTe) plug-in on Cubase AI.

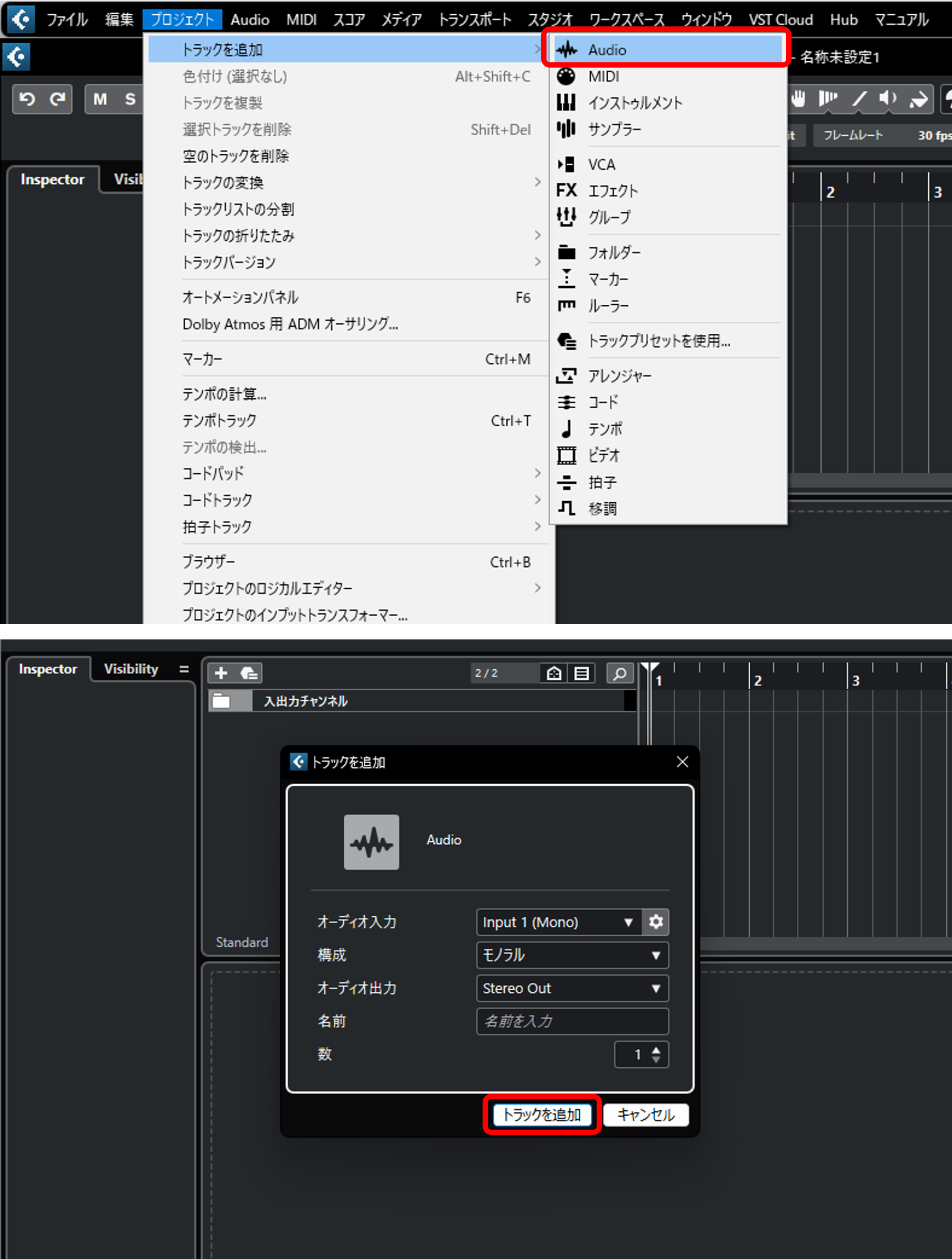

First, launch Cubase AI. Next, add an audio track.

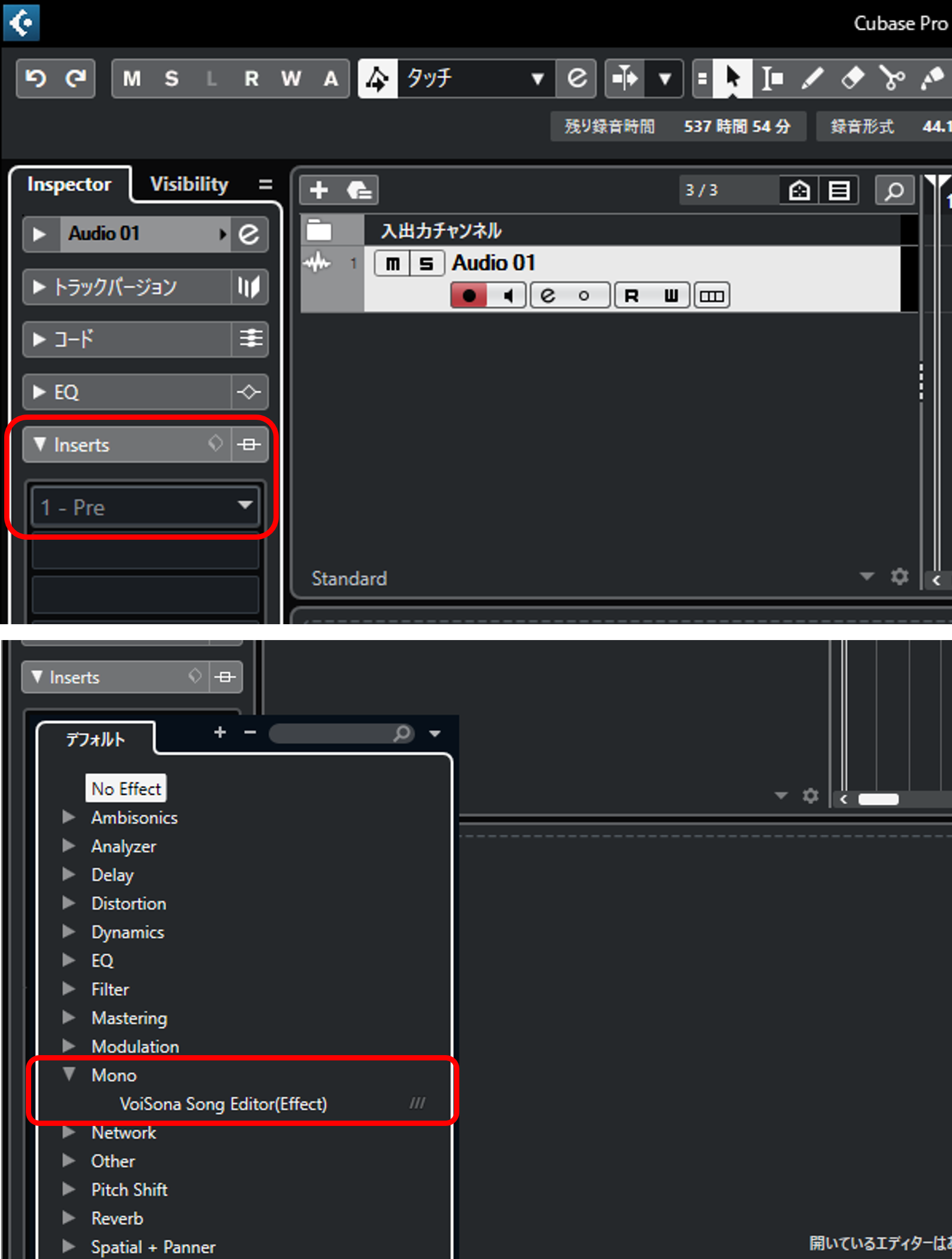

After selecting an audio track, choose Inspector > Inserts and click on the location where you wish to insert the plug-in.

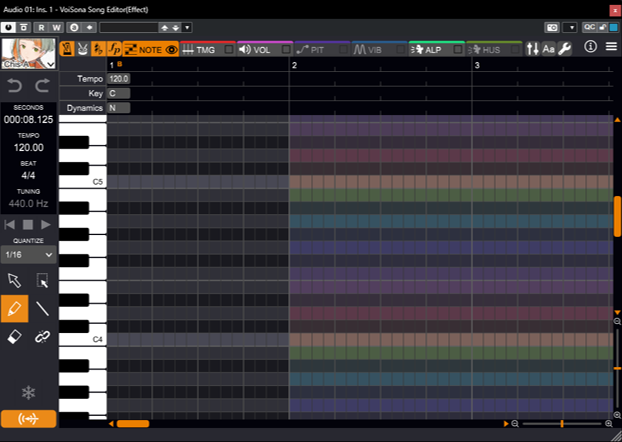

From the list of Effects displayed, choose VoiSona Song Editor (Effects). The VoiSona Song Editor (Effects) window is displayed, as shown below.

* When used as an effect plug-in in Logic Pro, GarageBand, or Cubase, some kind of audio waveform (e.g., wav file) must be set in the audio track that serves as the input for the plug-in. Note that no synthesized sound will be output in sections where no audio waveform is set.

Using VoiSona as Standalone App

If you do not have a DAW, you can use the standalone version to try it out.
First, launch the installed VoiSona.

Click the + icon.

Select "Add Song Track".

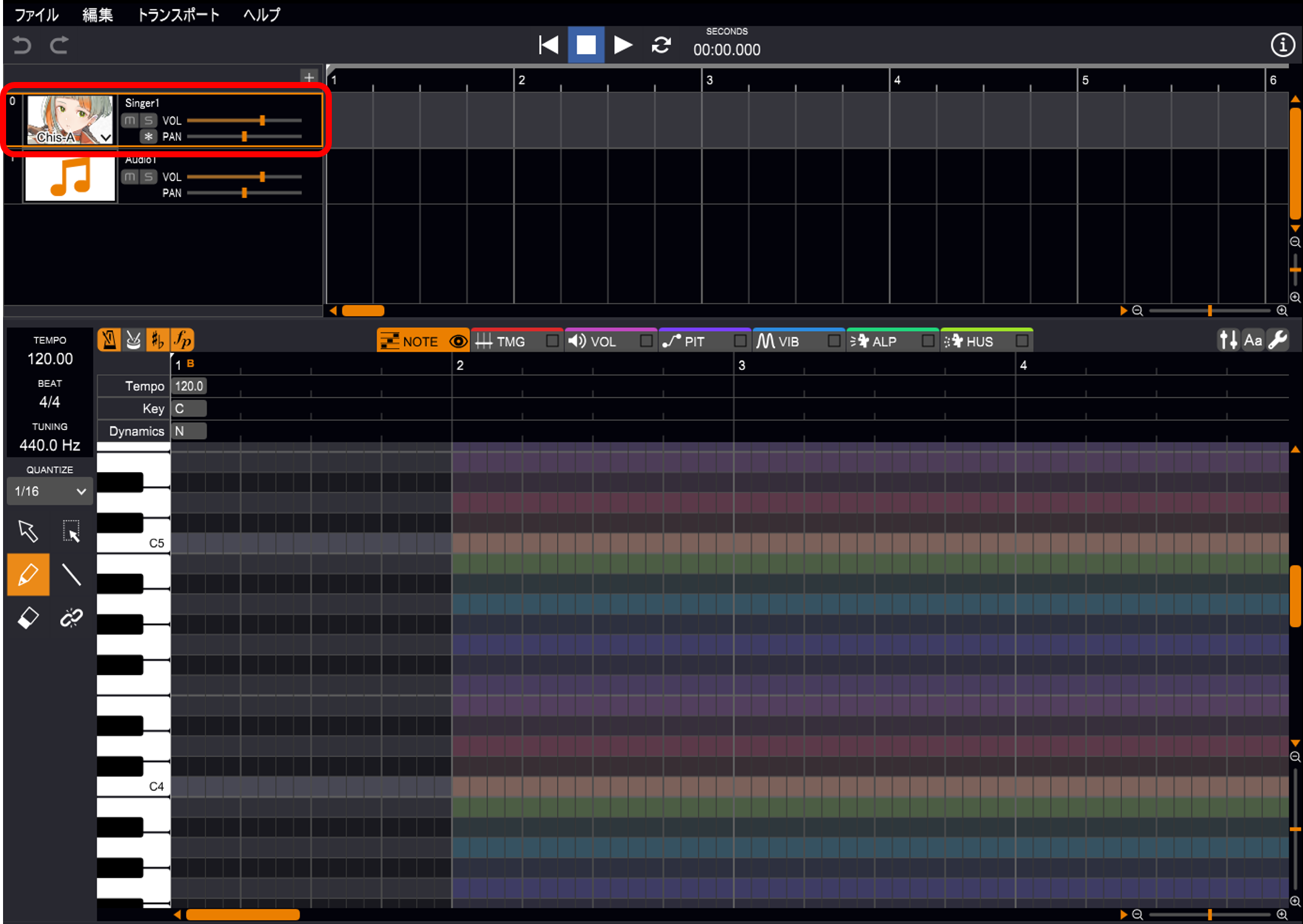

VoiSona’s Song Editor window is displayed by selecting the added song track.

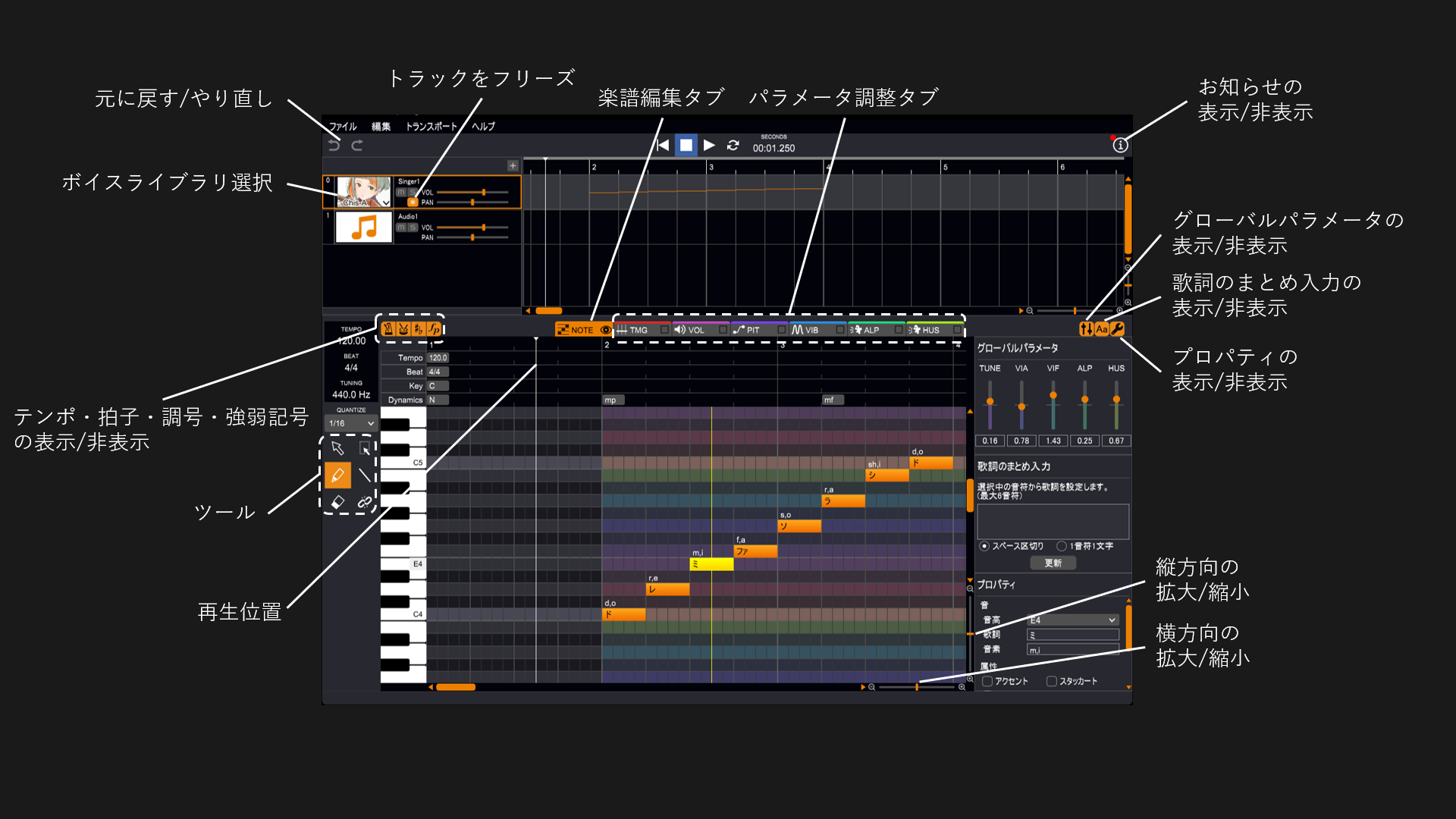

Explanation of Song Editor Window

Select Voice Library

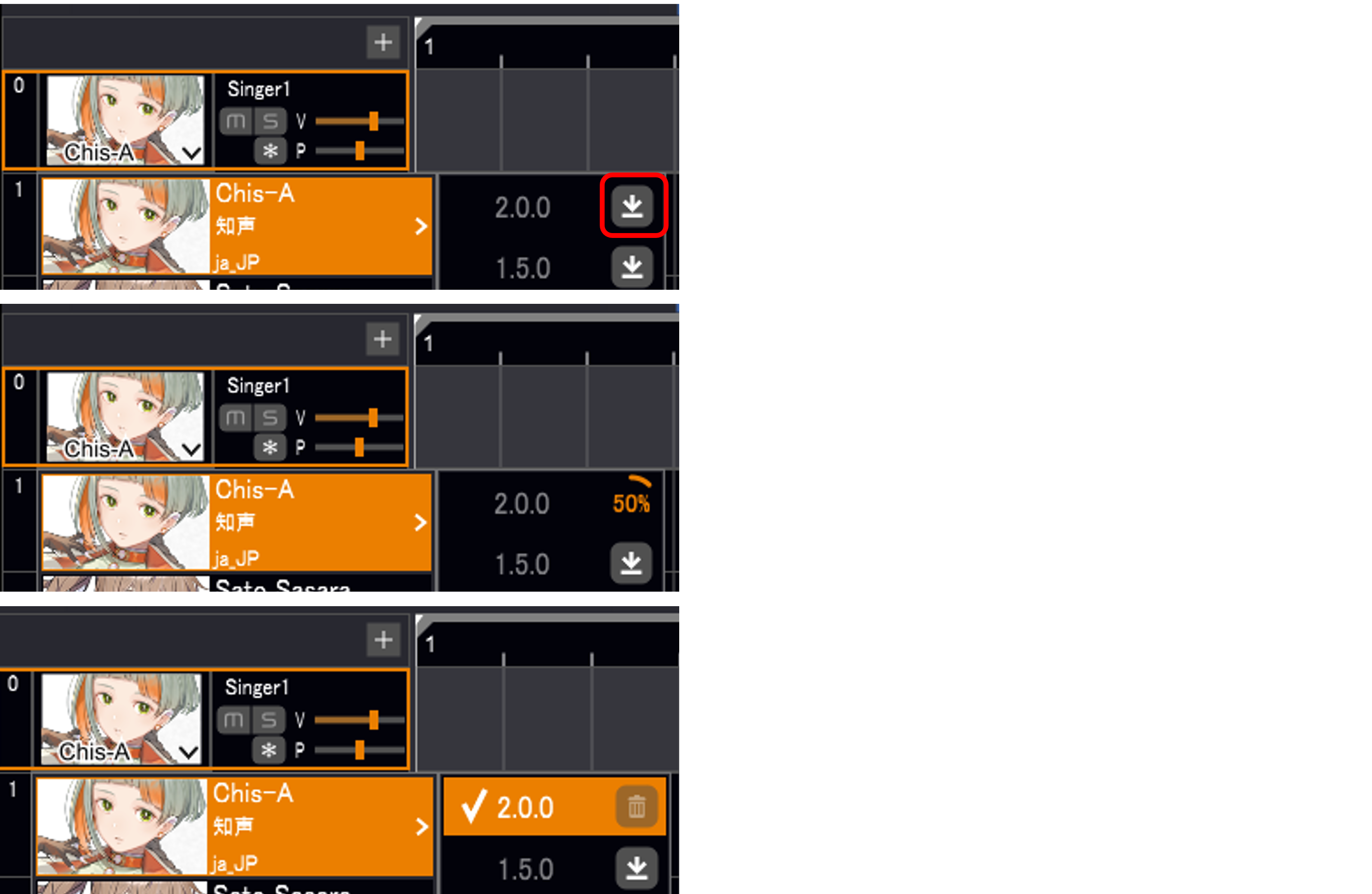

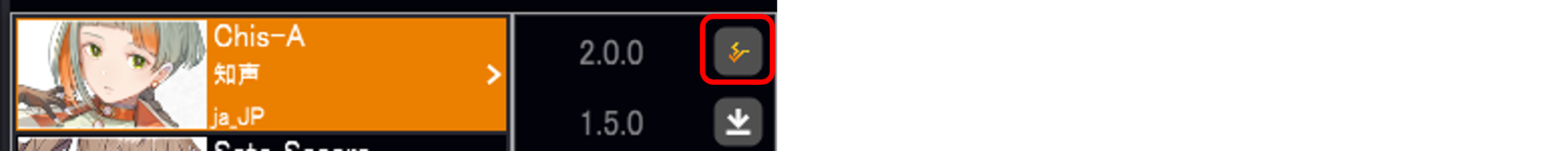

Click the Library pull-down to view a list of available Voice Libraries. If there are Voice Libraries that have not yet been downloaded, Download buttons will appear on their right side.

Some Voice Libraries may not be supported because the version of the Editor you are using is not up to date.
In such a case, click the button displayed to go to the Download page. Download and install the latest version of VoiSona.
After you launch the updated VoiSona, Download buttons for the Voice Libraries will now appear.

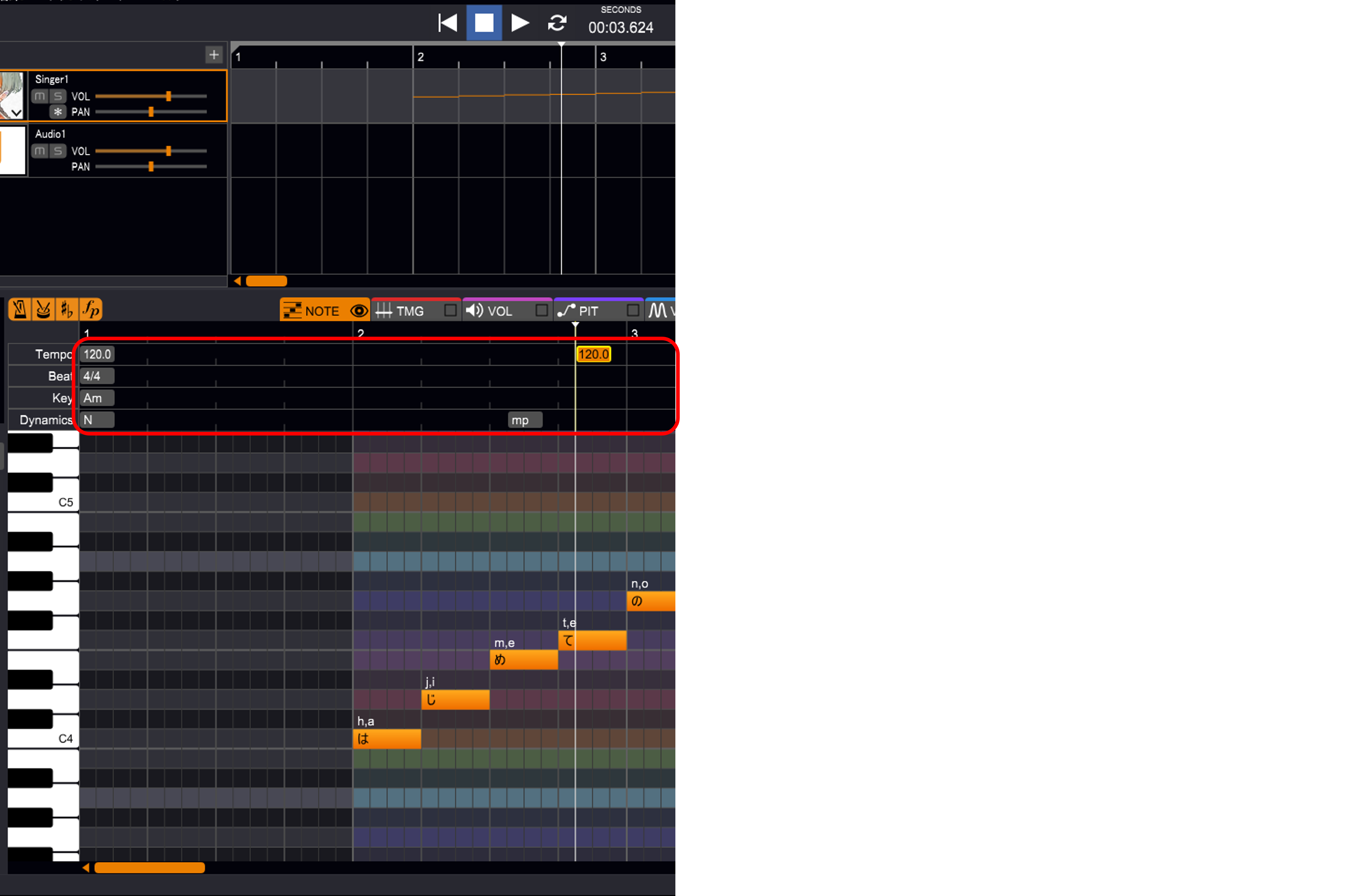

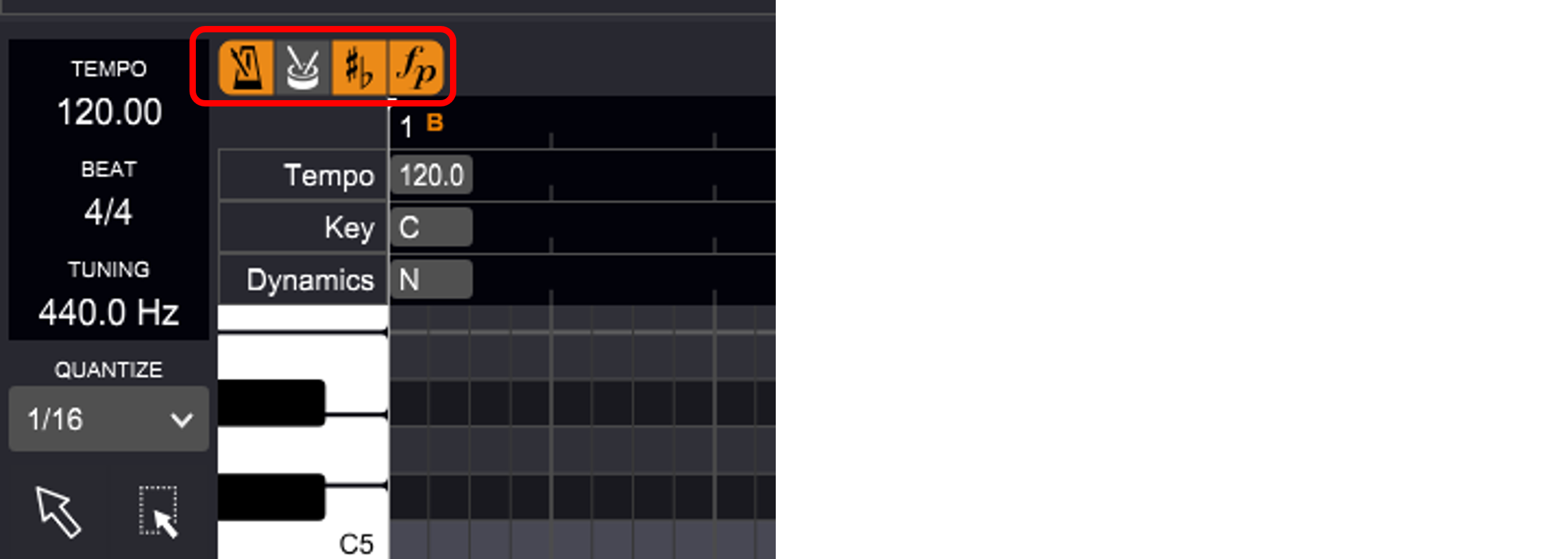

Tempo, Beats, Key Signature and Dynamic Symbols Editing

Buttons to display/hide their editor areas.
By double-clicking on each editor area, a symbol can be inserted and edited.
Specifying the correct key signature is critical in getting good singing results from the singer.
Specifying the dynamics symbols gives the singer a modulated voice.
* Depending on the voice library or the score, it may be difficult to tell the effects of dynamics symbols.

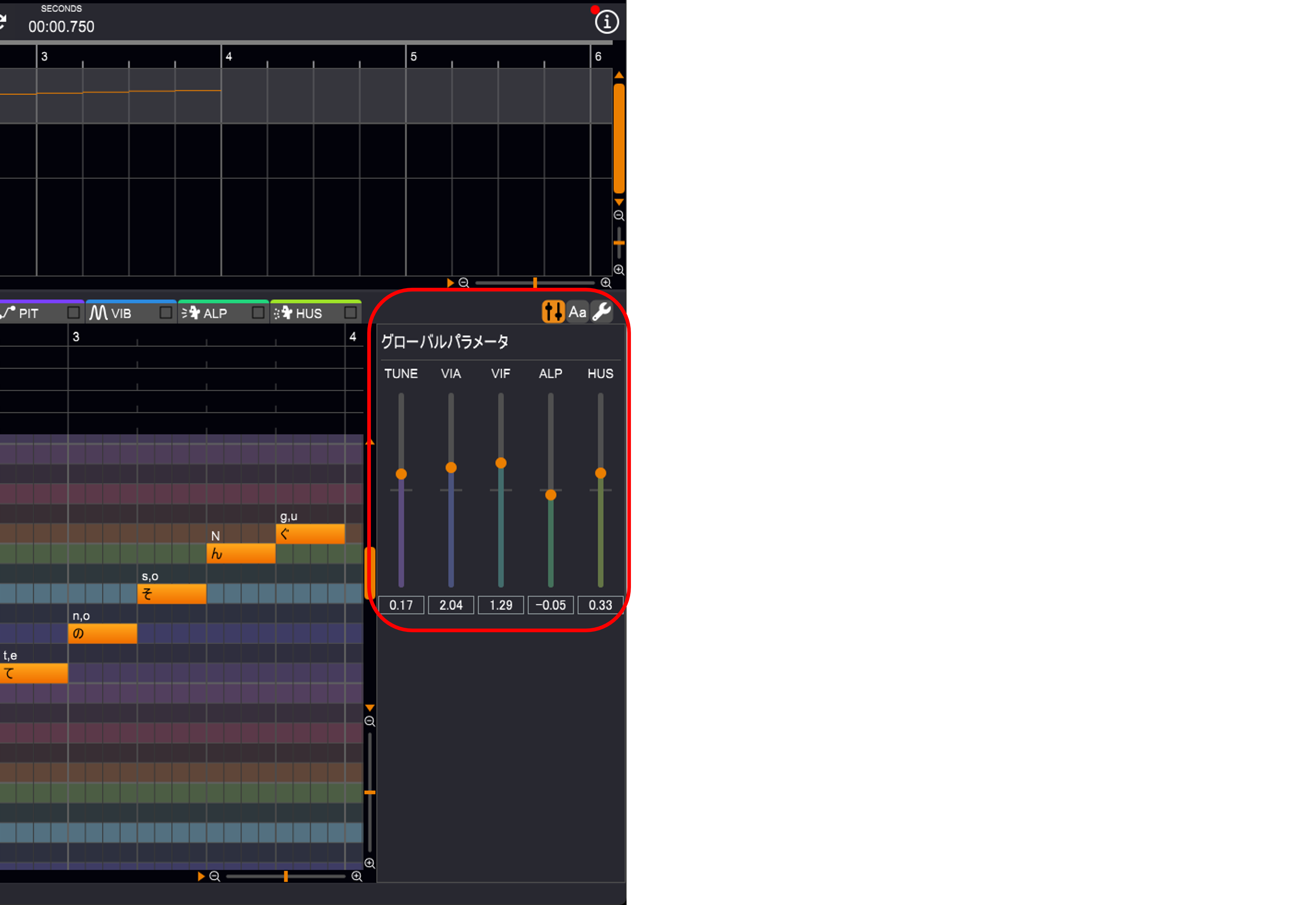

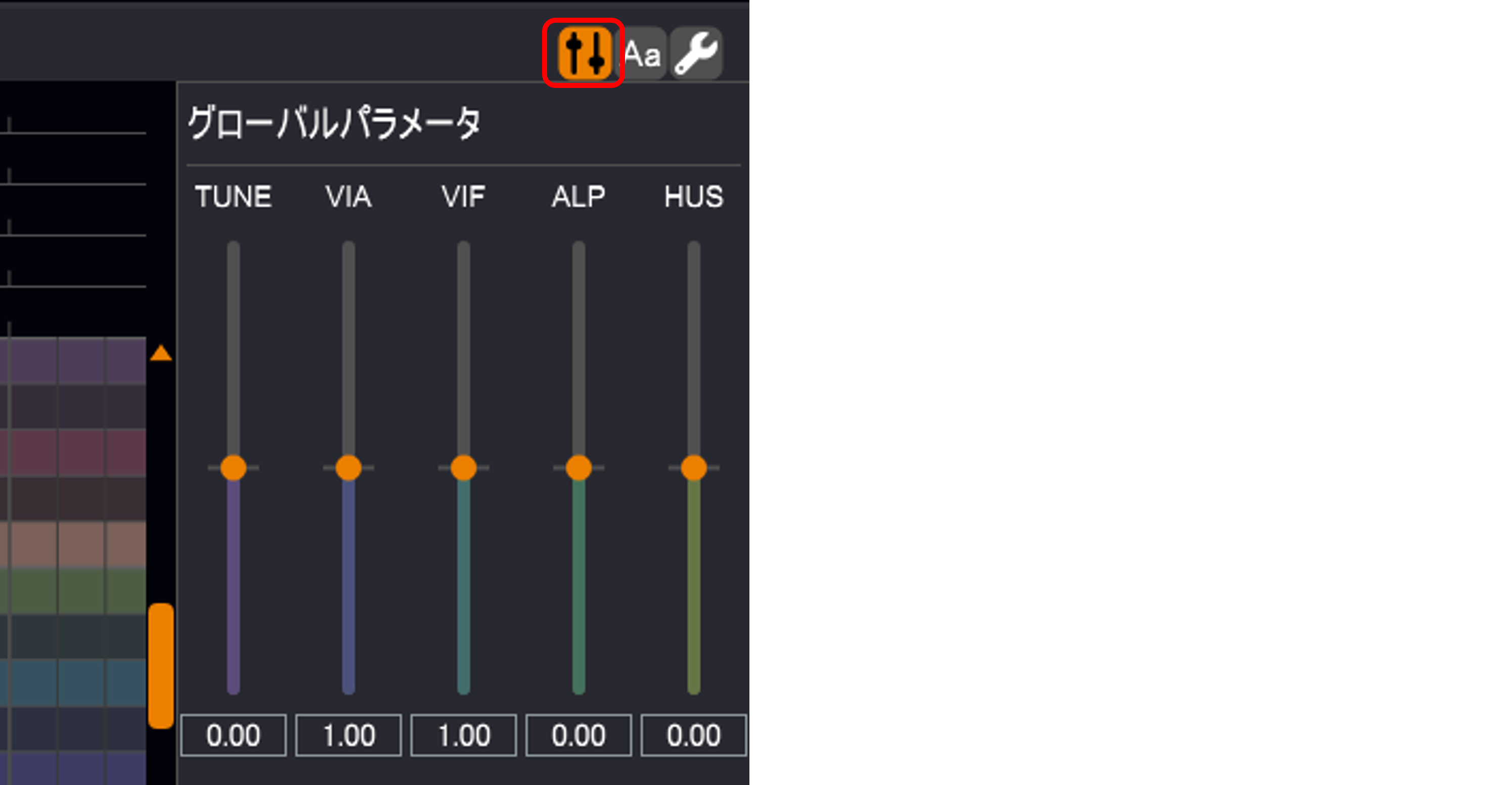

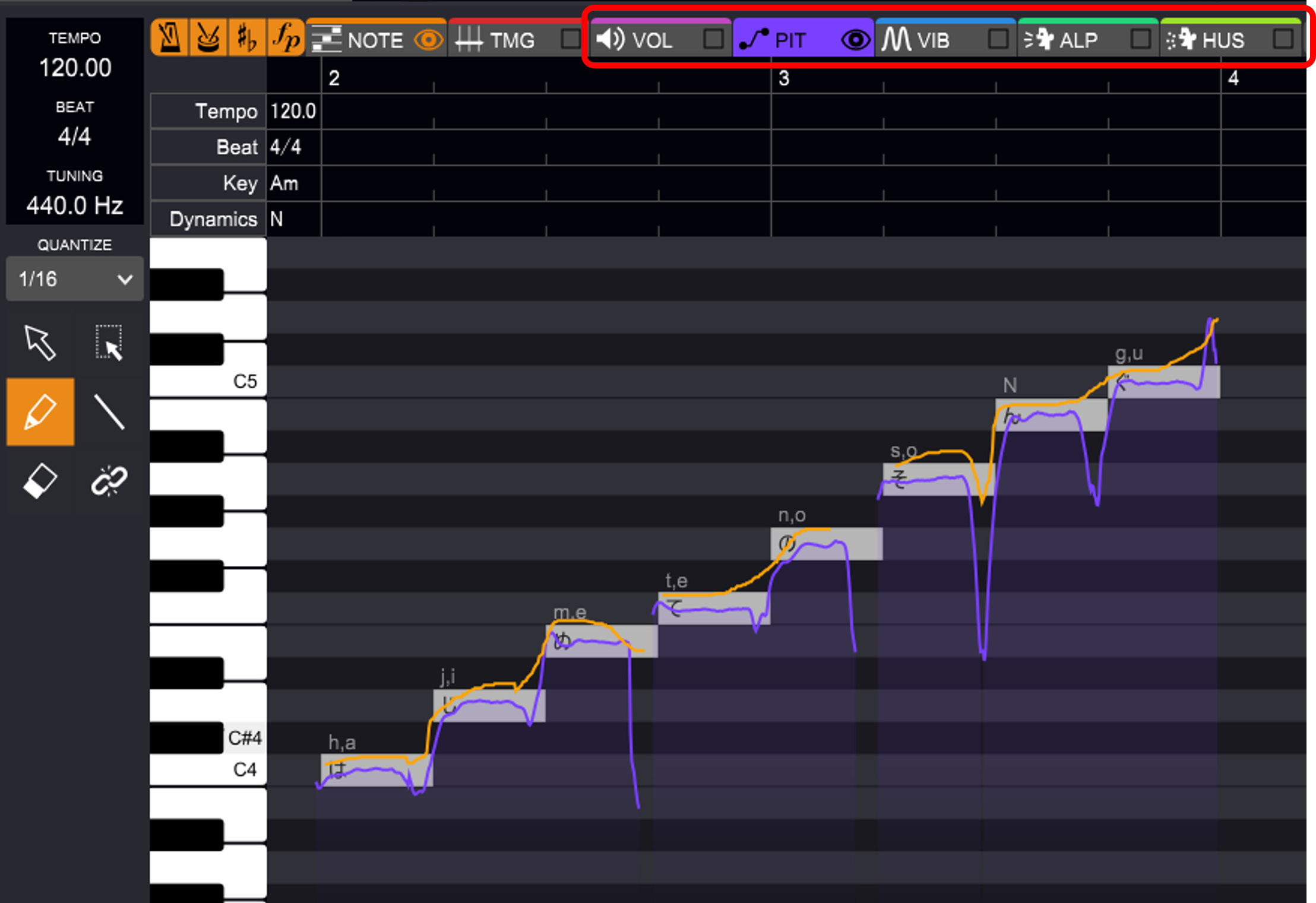

Global Parameters

Edit parameters that apply to the entire song.
・TUNE: Fidelity to the pitch of the notes. The lower the value, the more the note strays from the correct pitch. The higher the value, the closer the note is to the correct pitch.

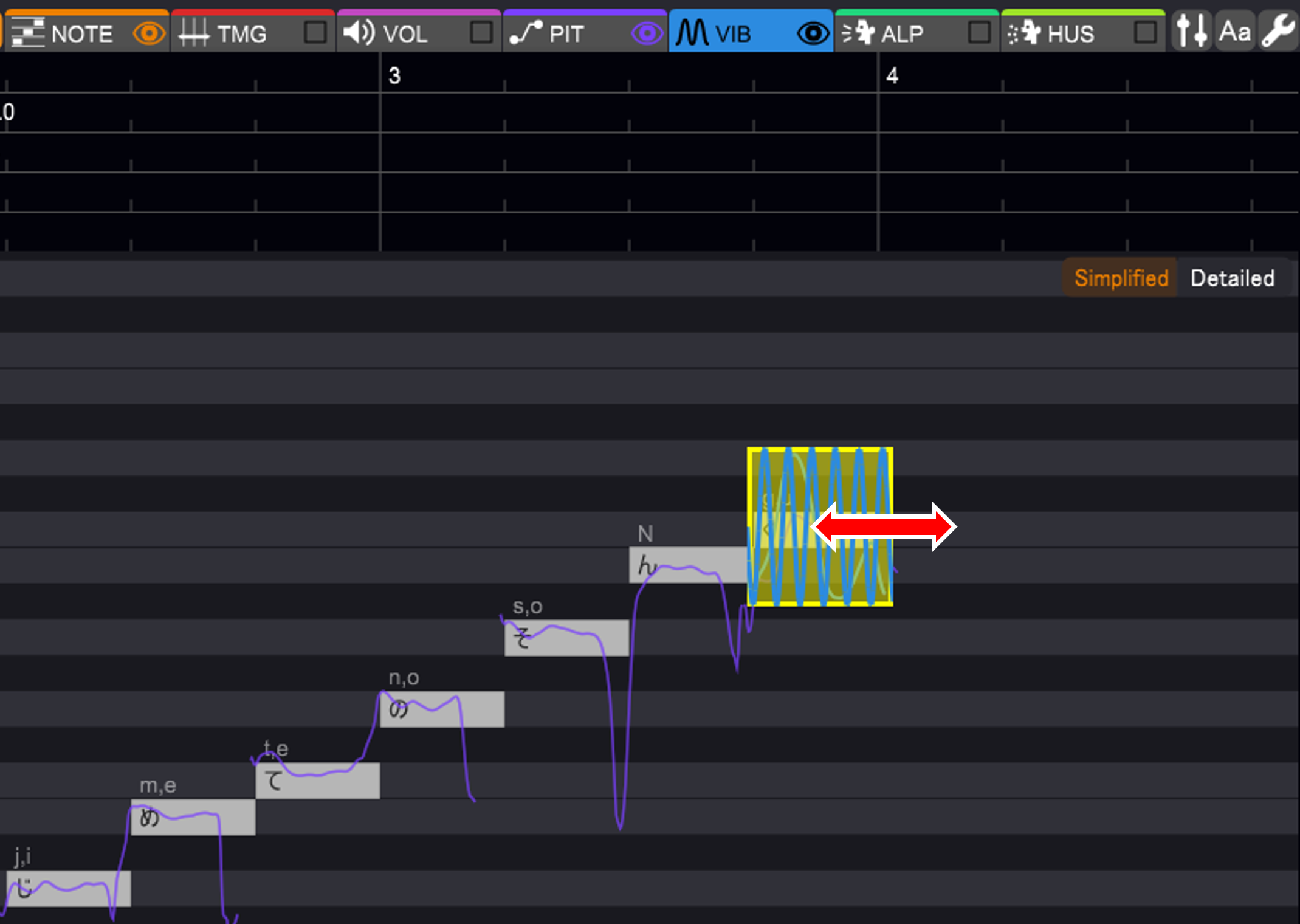

・VIA: Amplitude of vibrato. Raising the slider makes the vibrato wider.
・VIF: Vibrato frequency. Lowering the slider results in a soft vibrato, while raising it makes it narrower.
・ALP: Voice quality. Lowering the slider makes the voice sound more childlike, while raising it makes the voice sound more mature.
・HUS: Degree of huskiness. Increasing the value makes the voice huskier.

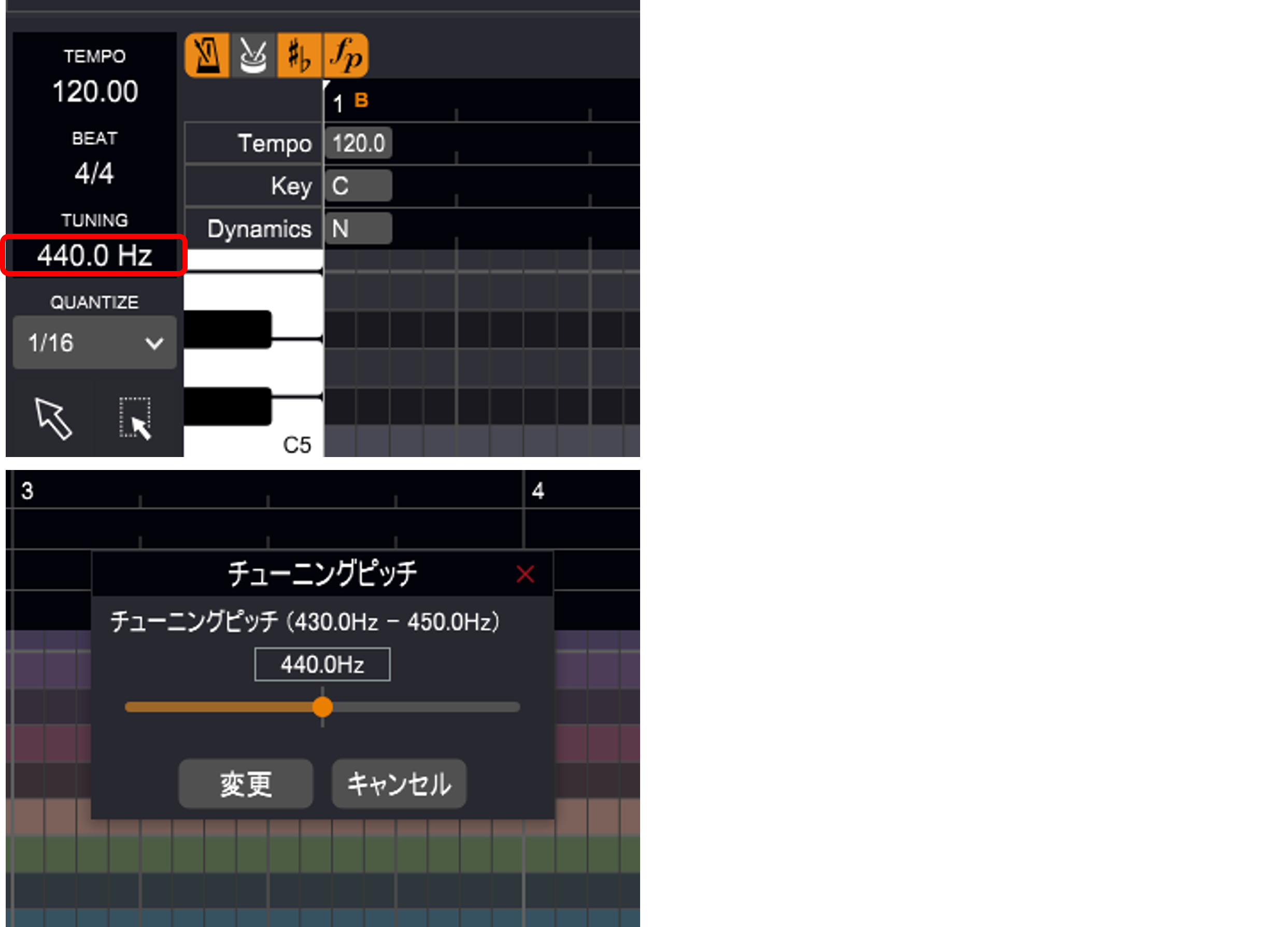

Standard Pitch

Edit the standard pitch of the entire song.

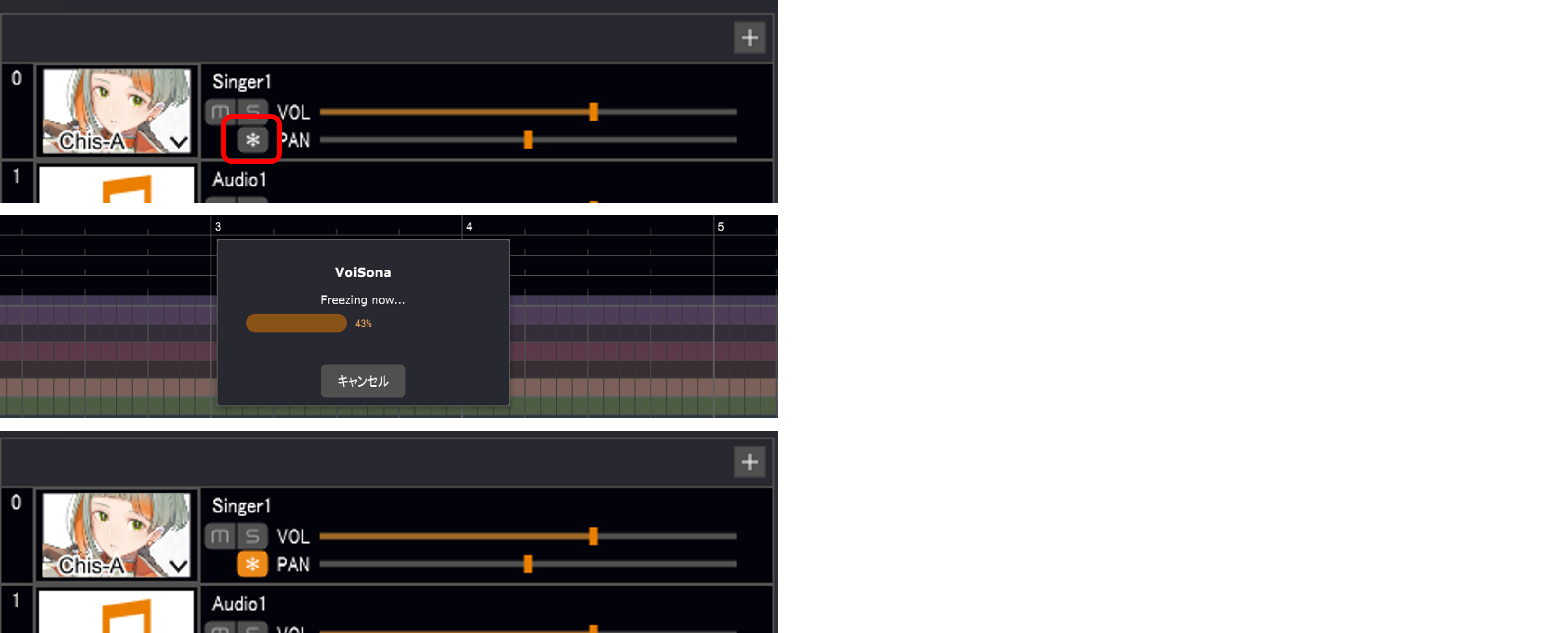

Freeze Track

Normally, voice synthesis processing is performed in real time during playback. However, computing resources may become overloaded on some PCs, resulting in choppy playback.
In such a case, the Freeze function can reduce the load during playback by performing voice synthesis processing in advance of playback.

When you click the Freeze button, the voice synthesis process begins. Depending on your PC’s capabilities, this may take some time.

When voice synthesis processing is complete, the Freeze button becomes orange, indicating that the track is frozen.

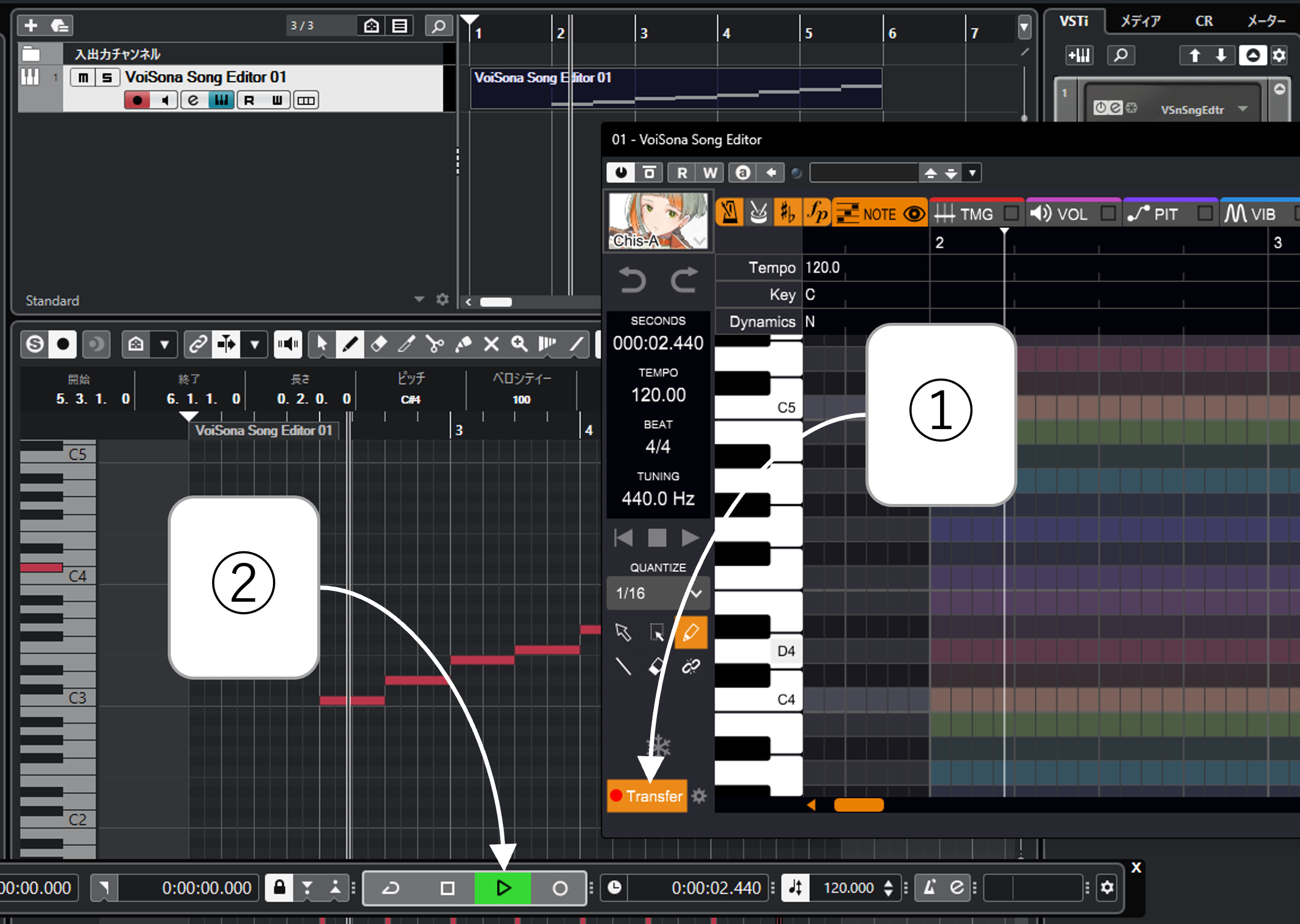

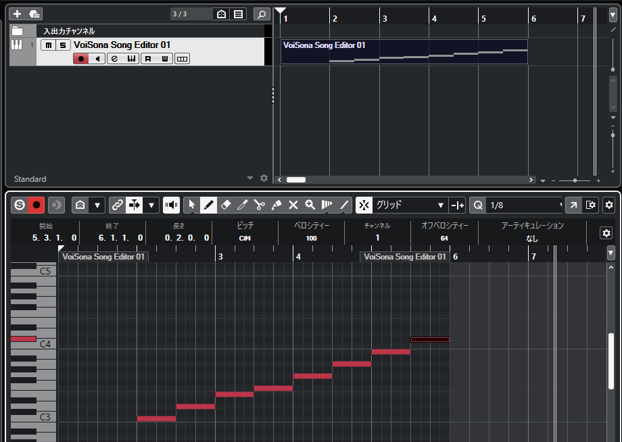

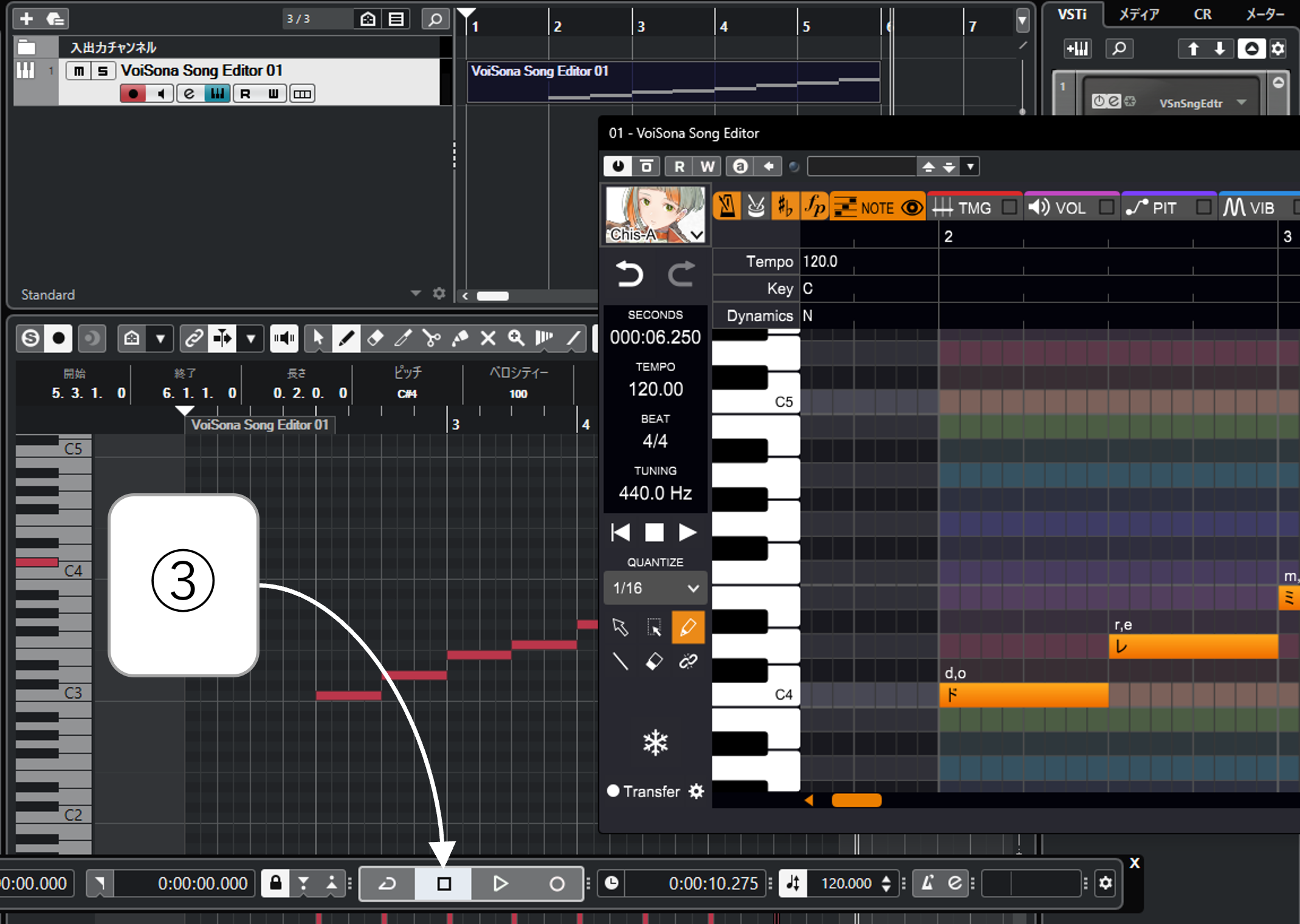

Transfer MIDI from DAW

You can transfer MIDI information entered in a DAW to VoiSona.
Note that only the MIDI information of the playback section will be reflected in VoiSona.

Audio input

With VoiSona Song Editor (Effects), besides synthesizing audio effects, you can add a singer’s voice to the audio input by clicking the Audio Input button to turn it ON.
(These features are currently in test function. They are available only to current subscribers of paid libraries.)
* When audio input is enabled, some functions such as PIT and HUS parameters are disabled.
* 48 kHz is recommended for the audio input function. If a sampling rate other than 48 kHz is set, the synthesized sound output will be slightly delayed.

Import

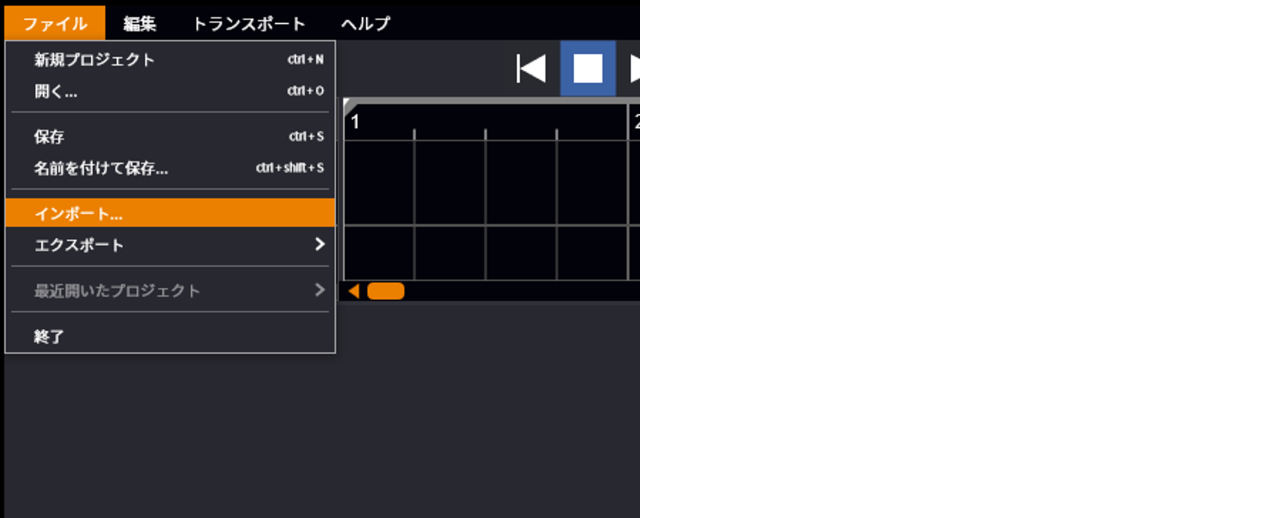

Select File from the menu, then Import. The following file types are supported.
tssprj: Import project file in VoiSona’s proprietary format
CCS/CCST: Import CeVIO Creative Studio and CeVIO AI project files
Music XML: Import music score in Music XML format
MIDI: Import MIDI file. Tracks can be selected.

Export

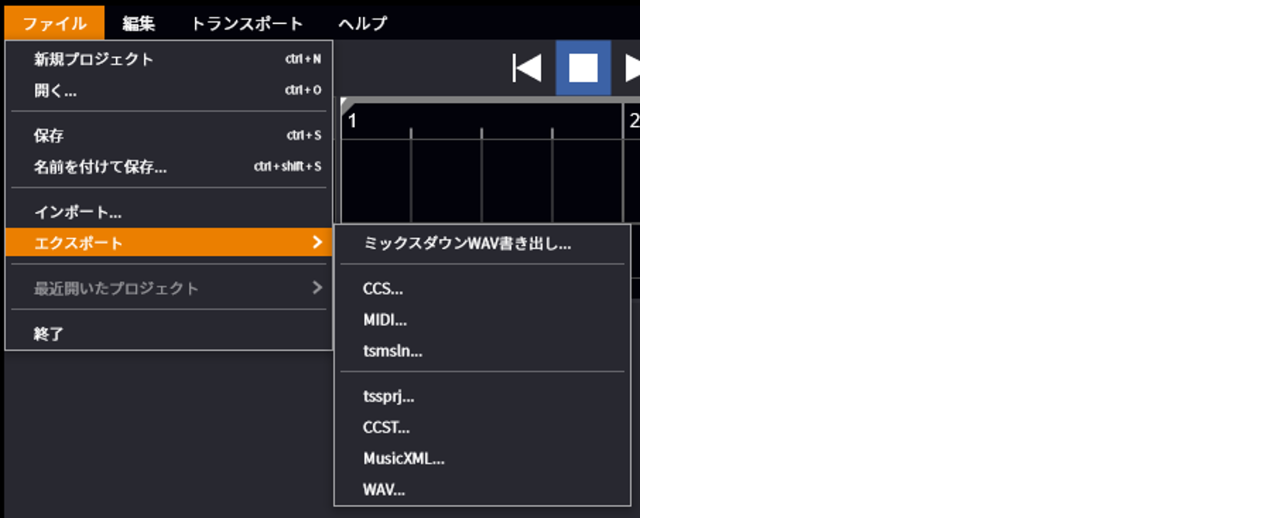

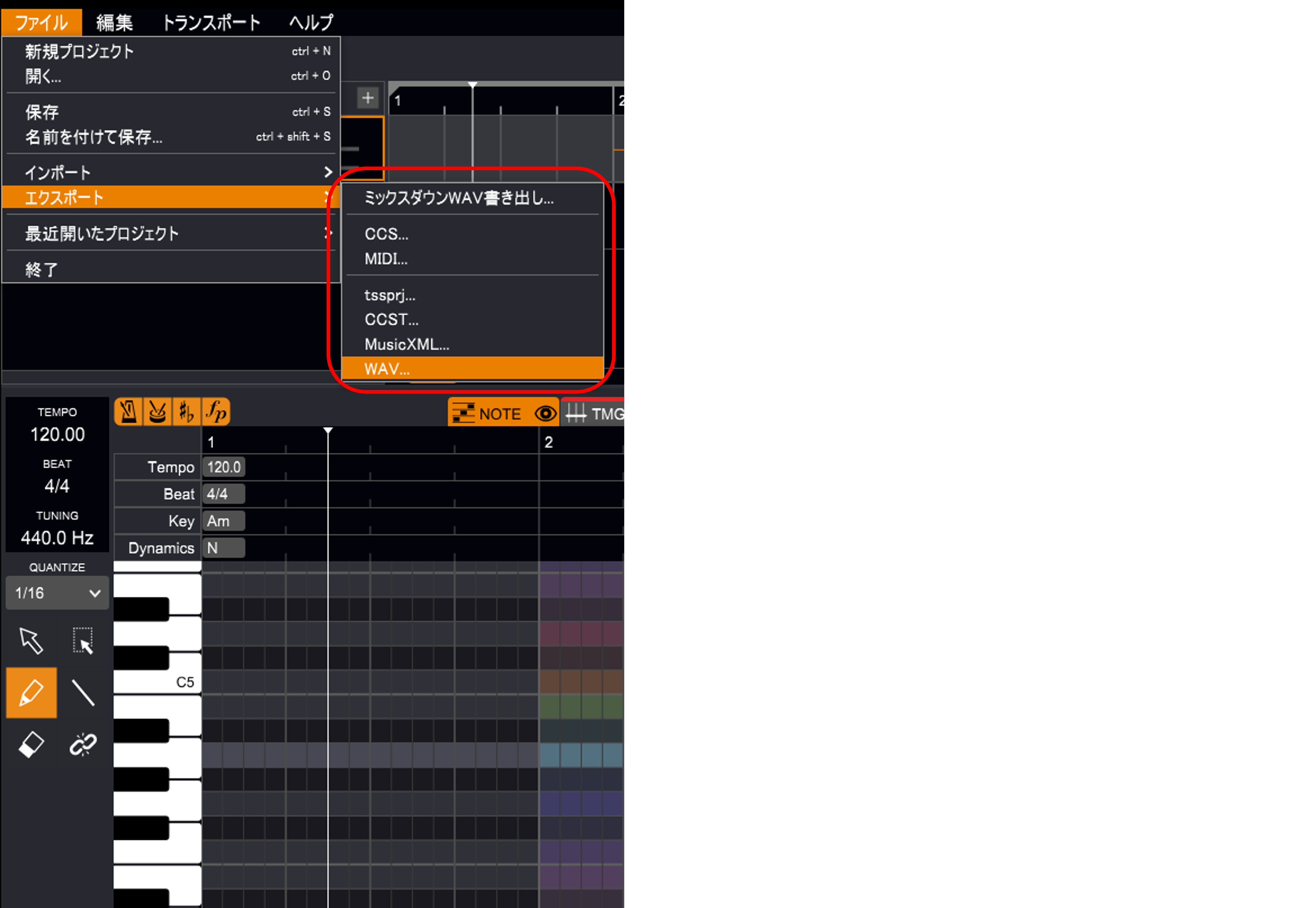

Select File from the menu, then Export. The following file types are supported.
CCS/CCST: Export CeVIO Creative Studio and CeVIO AI project files
Music XML: Export music score in Music XML format (note that adjustment parameters are not exported)
MIDI: Export MIDI file
WAV: Output synthesized voice waveforms. As an option, lab files can be exported at the same time.

Preferences

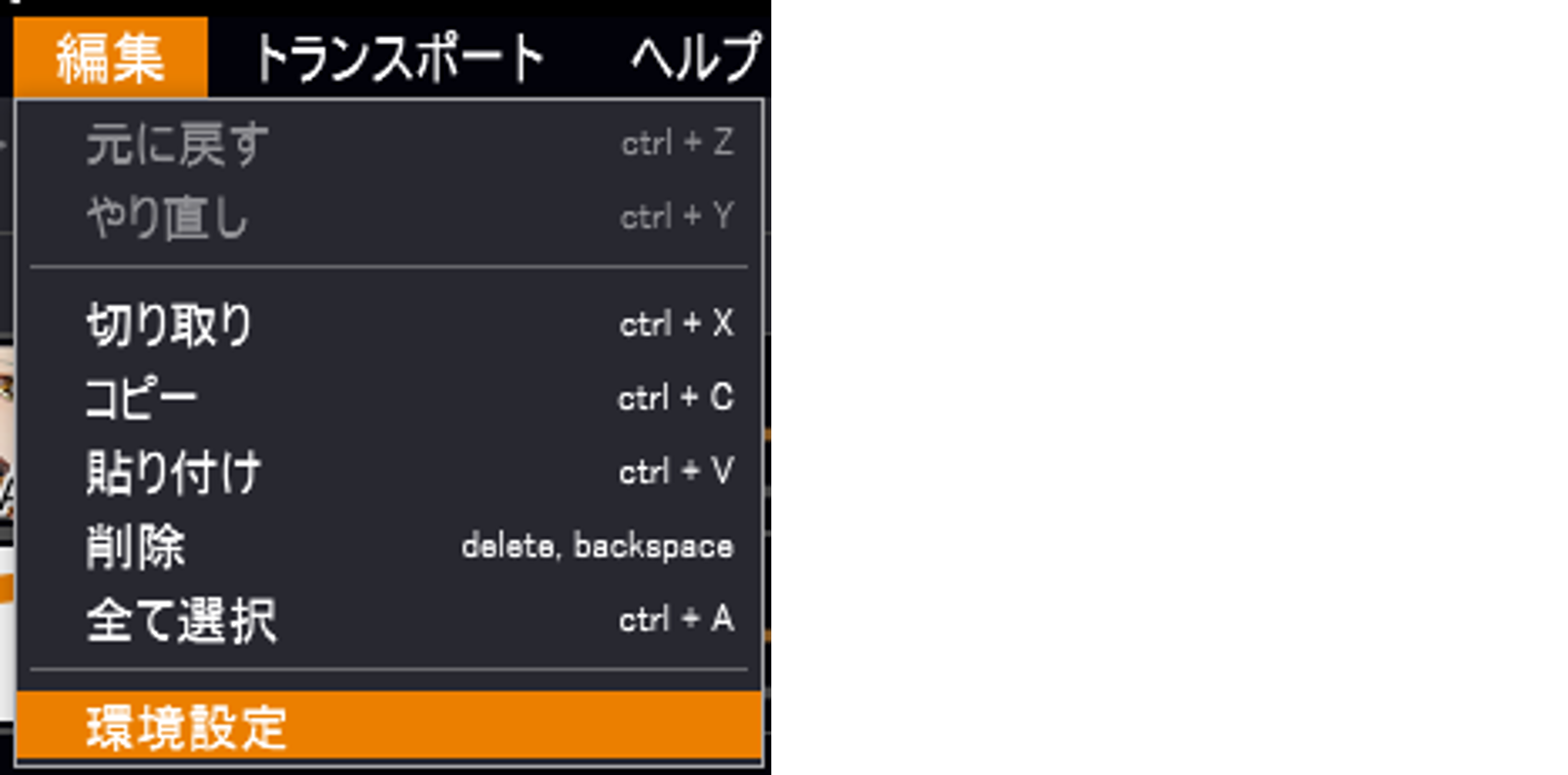

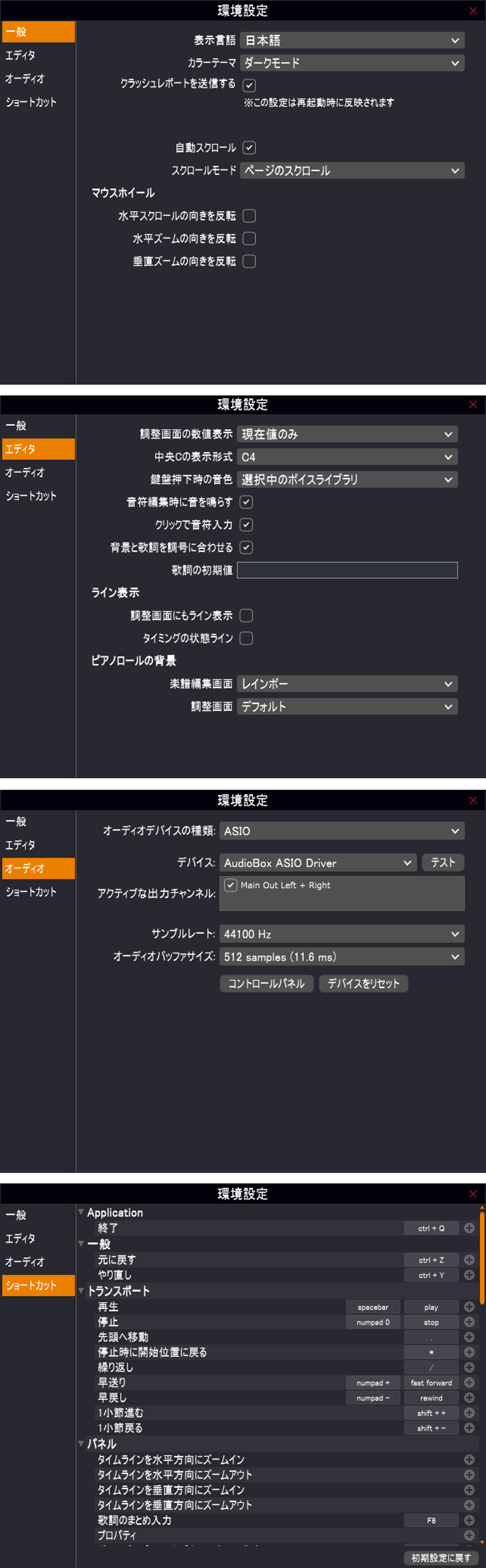

Select Edit from the menu, then Preferences to configure language settings, editor-wide settings, and shortcut keys.
Use shortcut keys to make creating songs faster!

Score Editing

Enter/Remove Notes

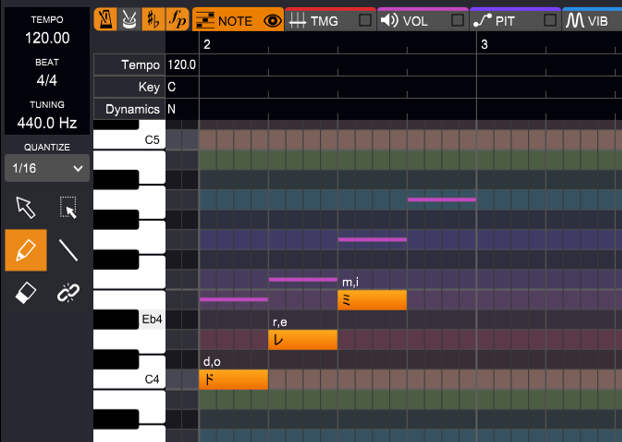

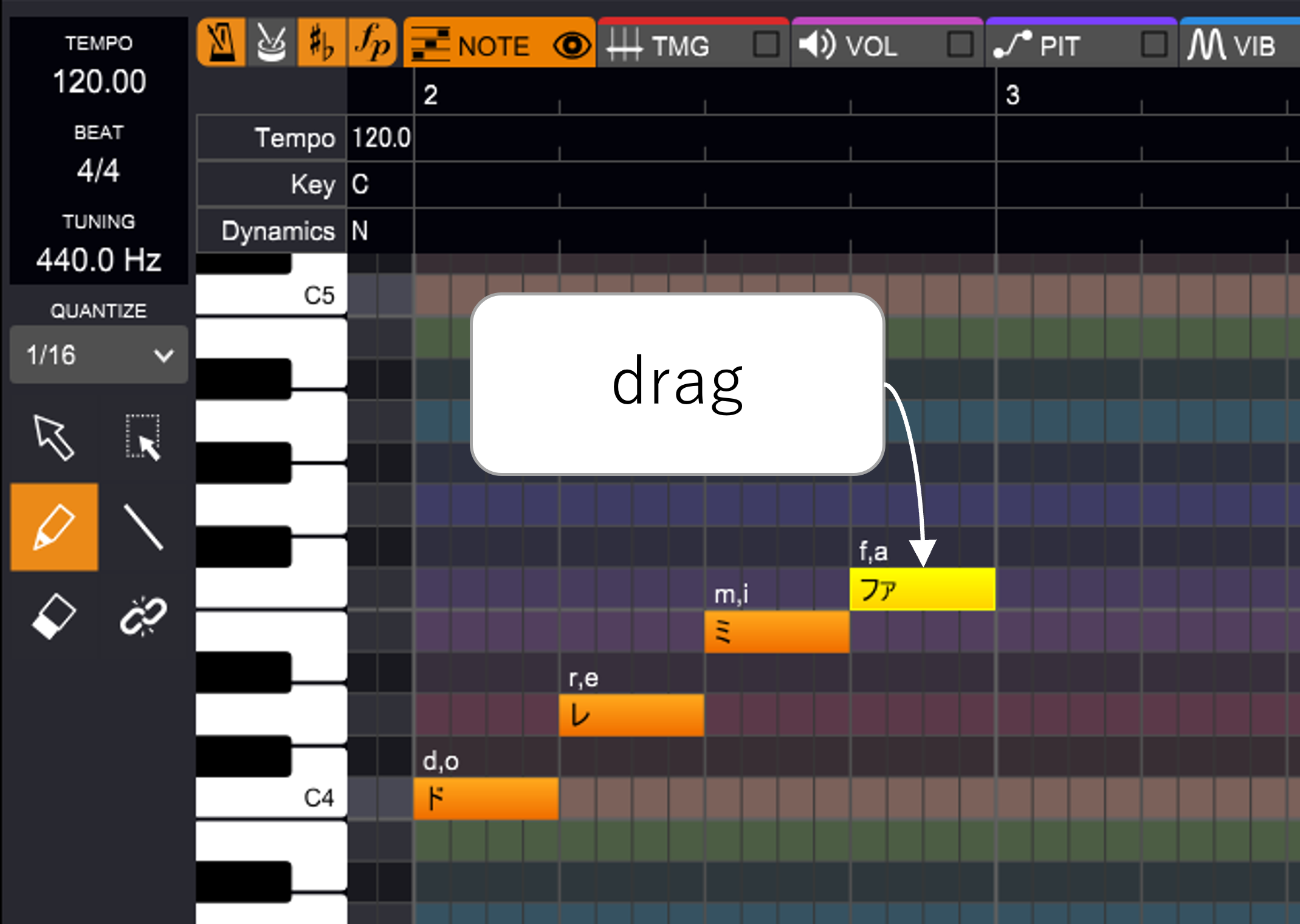

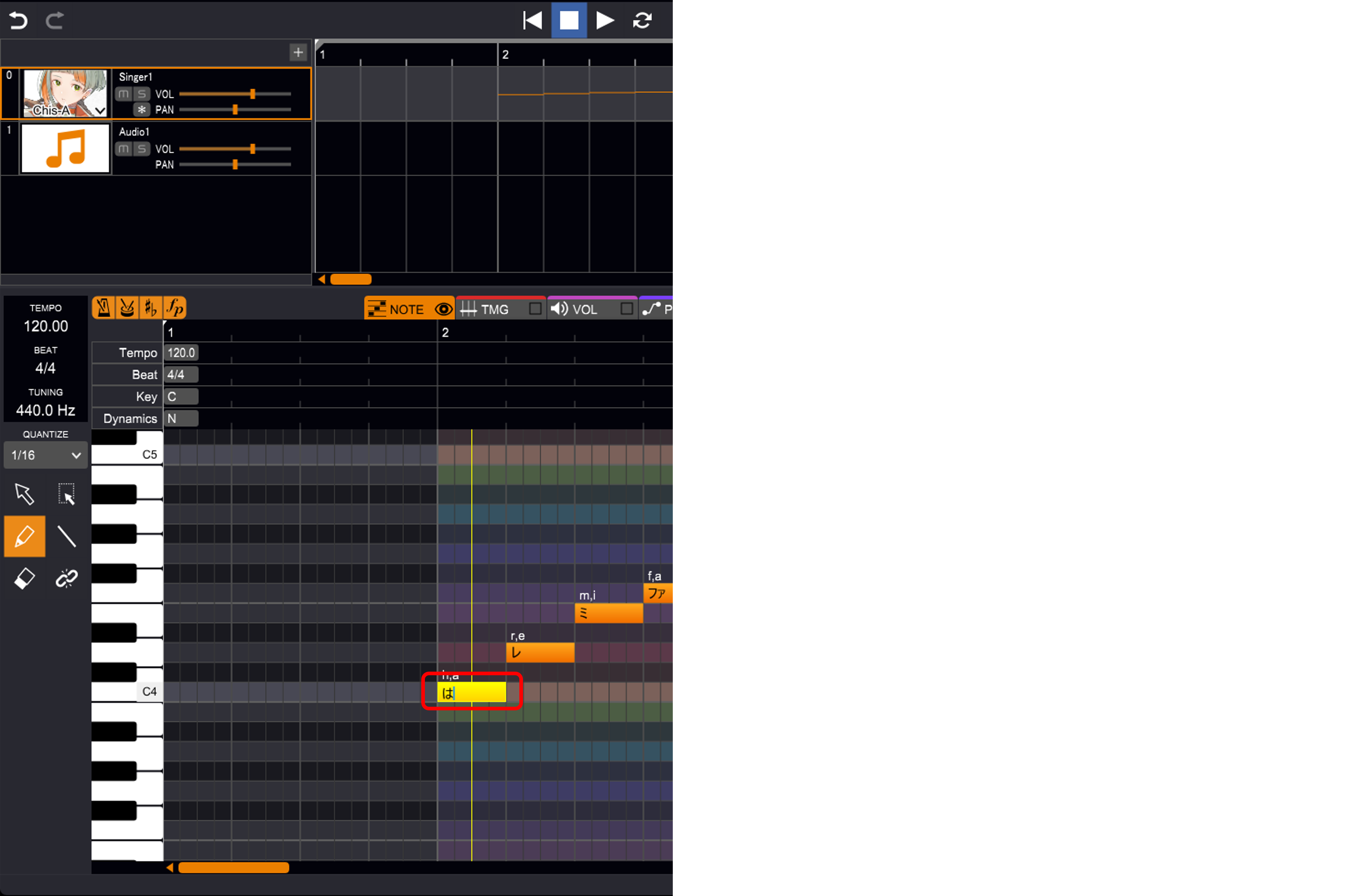

To enter a note, select the Pen tool from the Tools menu. Enter the note by dragging left or right the area where you want to place the note.

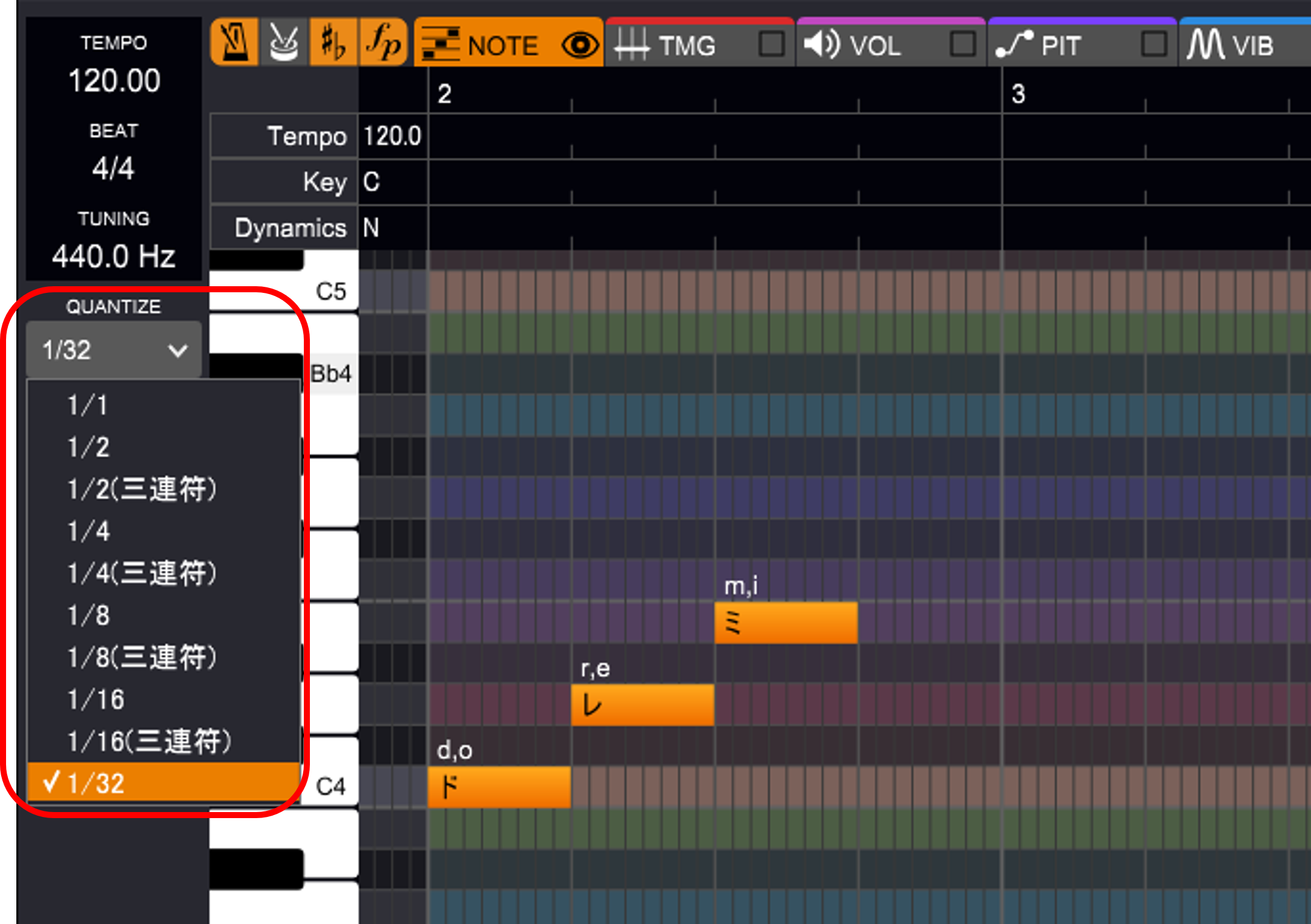

You can change the quantization settings for the notes from the QUANTIZE pull-down list on the left side of the editing window.

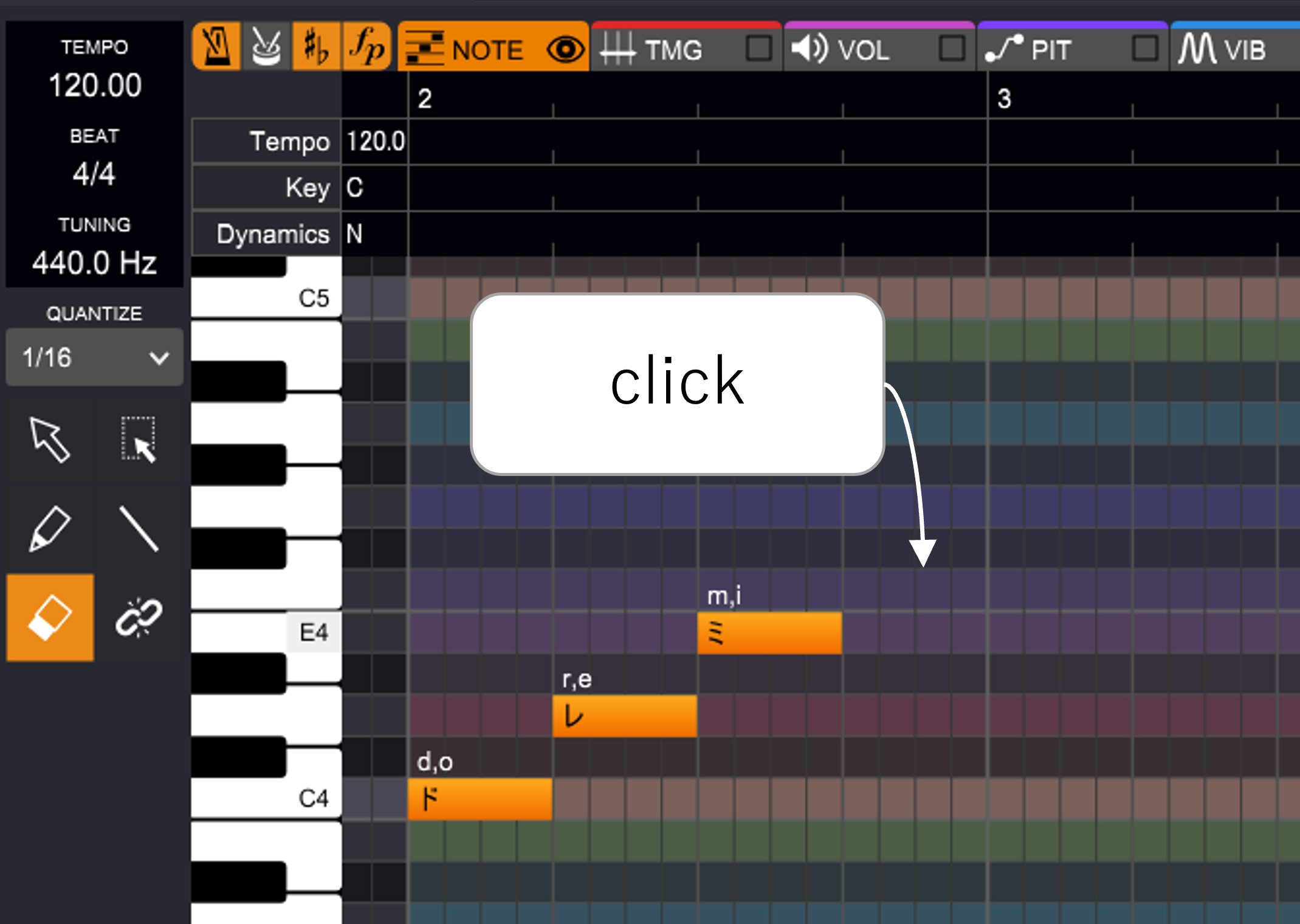

To remove a note, select the Eraser tool from the Tools menu. Click on the note you wish to erase.

You can also switch to another tool only while holding down the Ctrl key.
When you are using the Selection tool, the Bulk Selection tool, or the Split/Join tool, it switches to the Pen tool.
When using the Pen tool or the Line tool, it switches to the Eraser tool.
When using the Eraser tool, it switches to the Selection tool.

In the Score Editing window, notes entered on other tracks are also displayed.

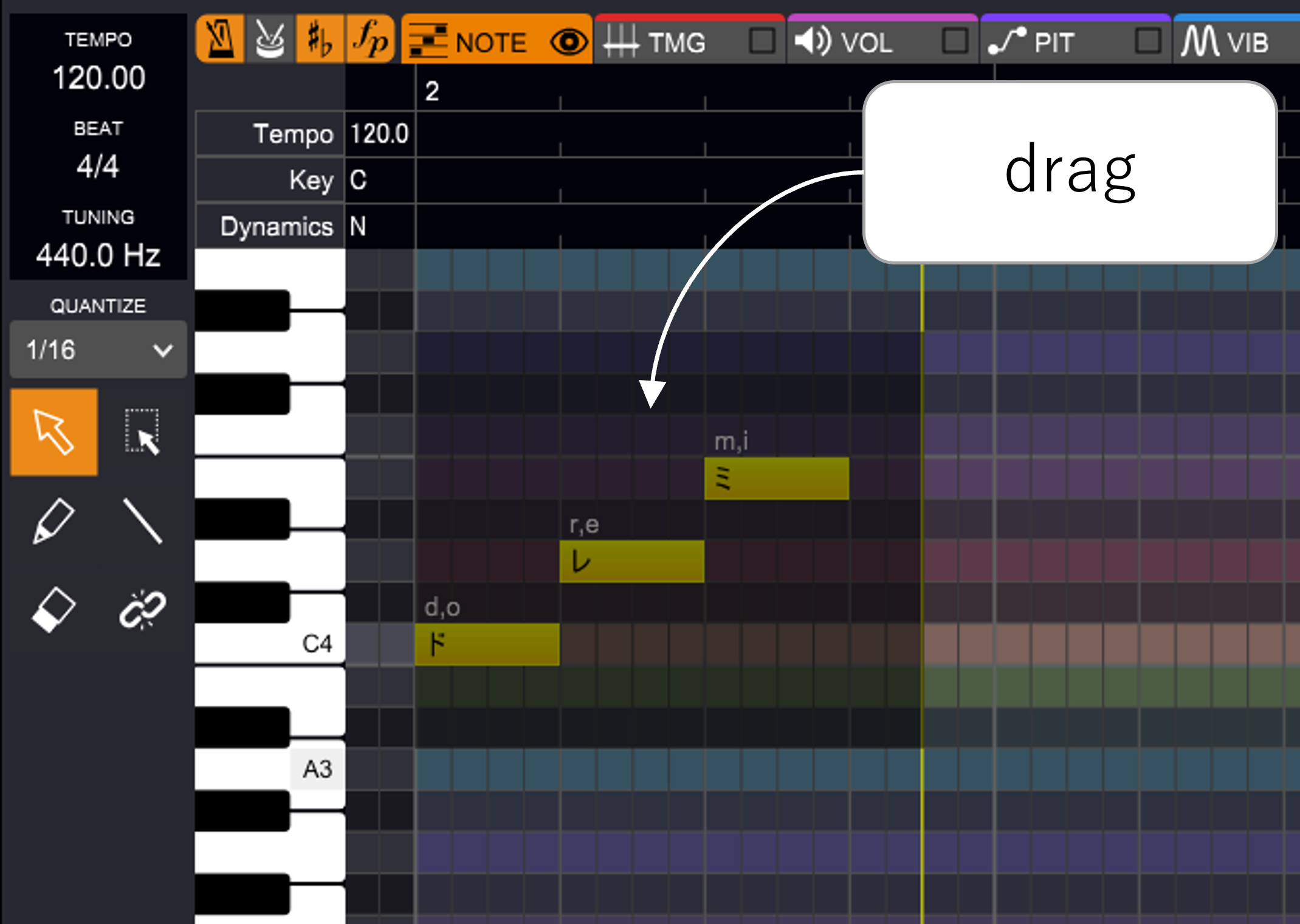

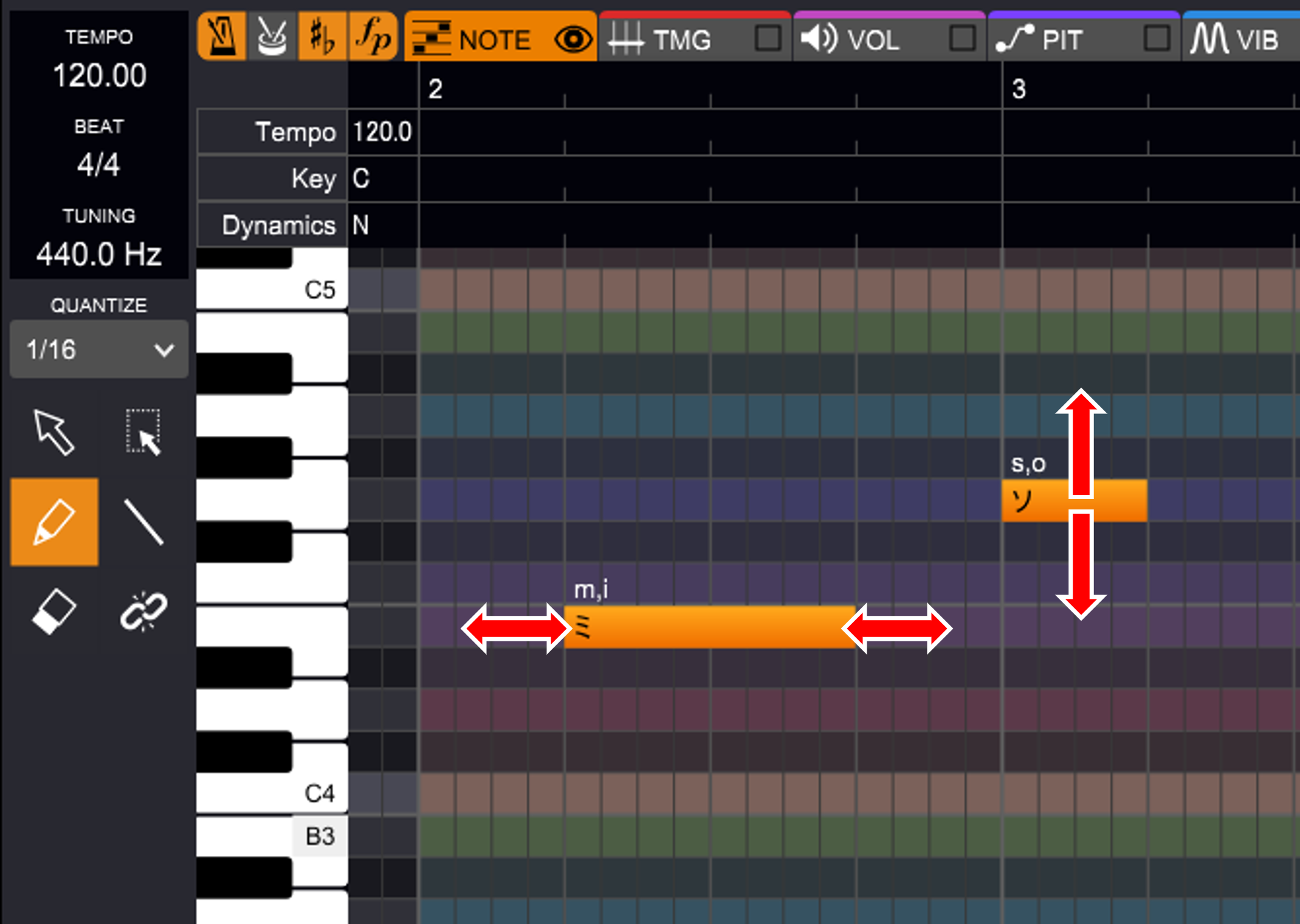

Note Editing (Pitch, Length)

Drag the note up or down to change the pitch.
Drag the note left or right to change its length.

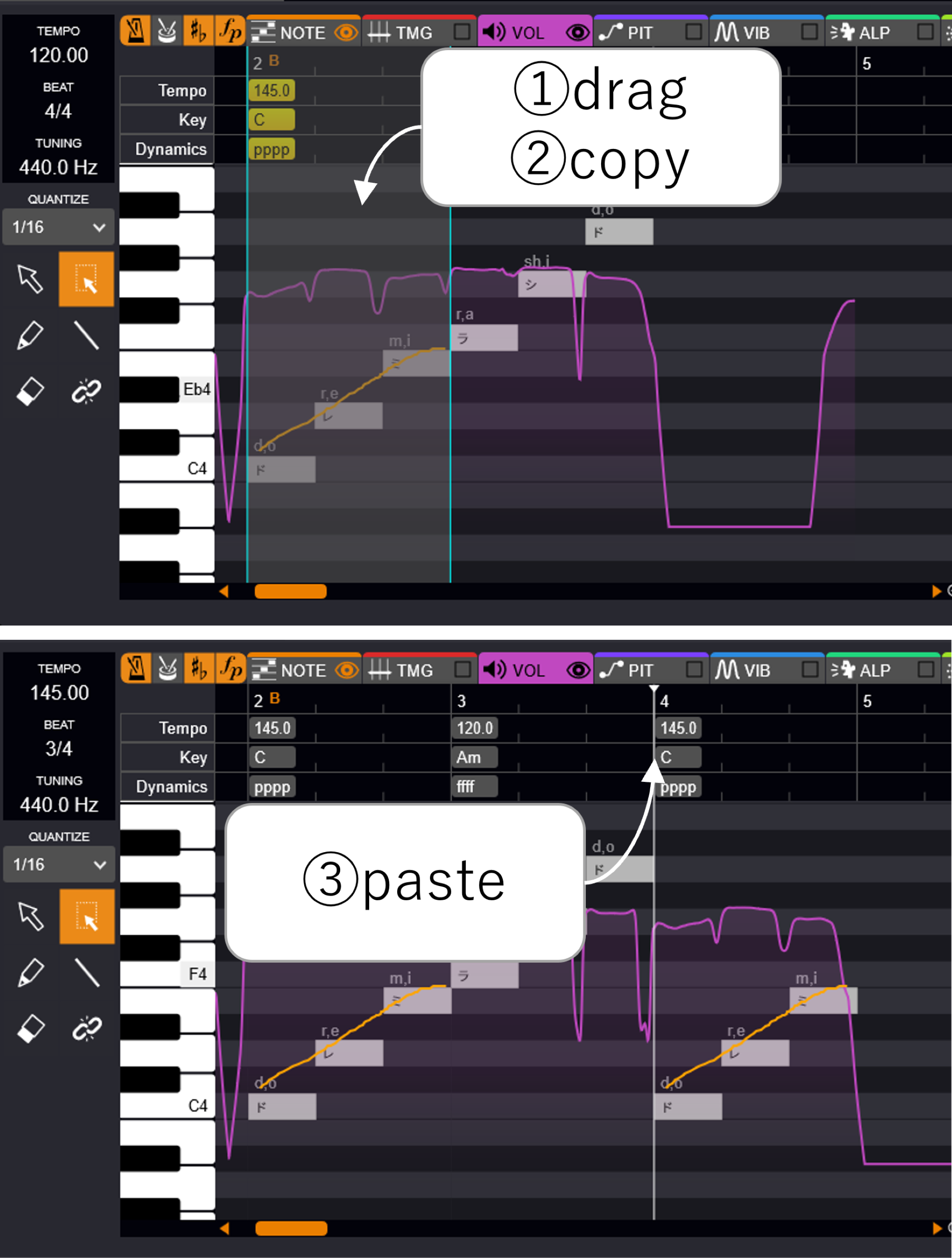

Select notes together at once to move, copy or delete them at the same time.

Splitting and merging notes

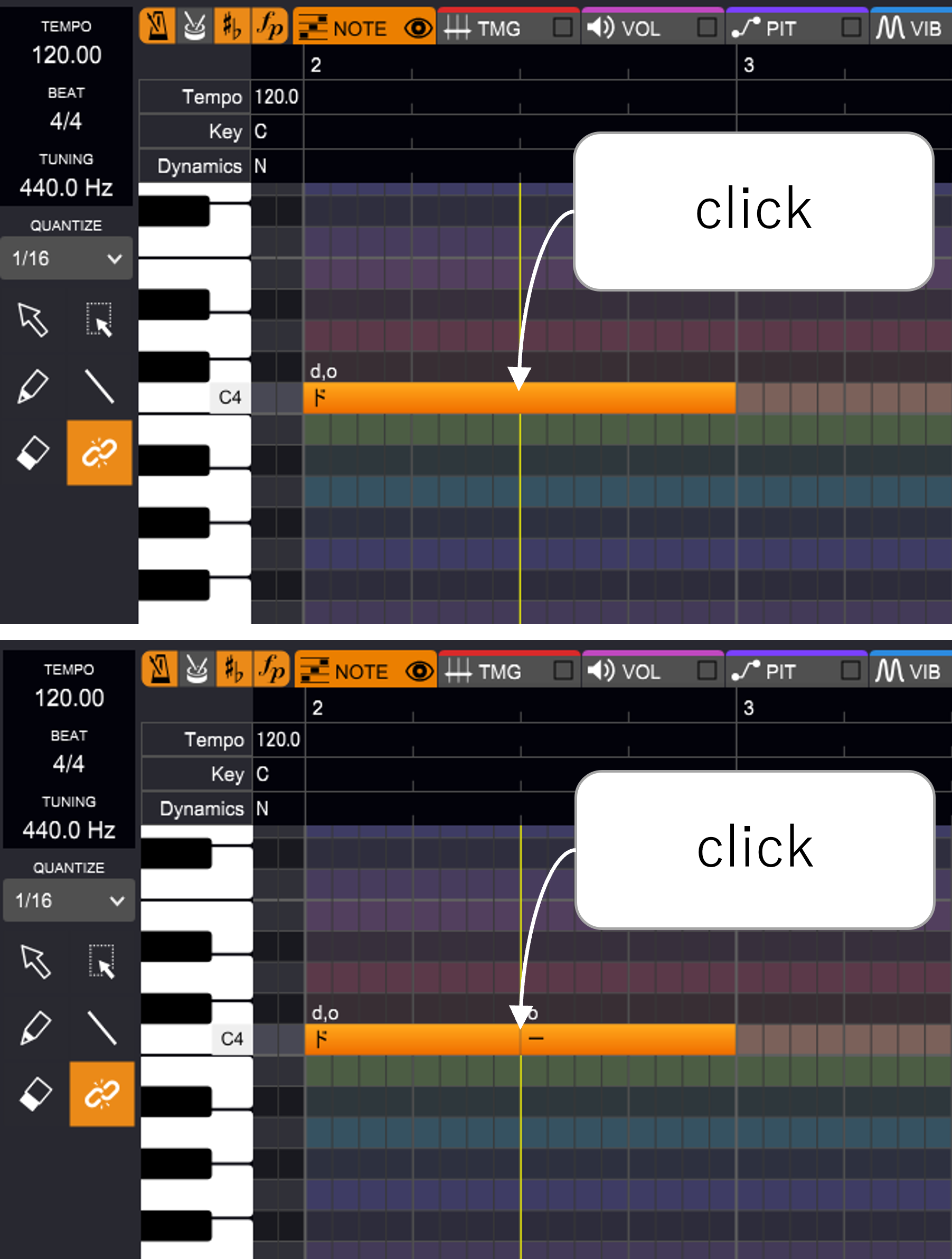

To split or join notes, select the Split/Join tool from the Tools menu.
Click on the position in the note where you want to split.

To join notes, click on the end of a note to join it with the note before or after it.

Lyric Syllables Entry

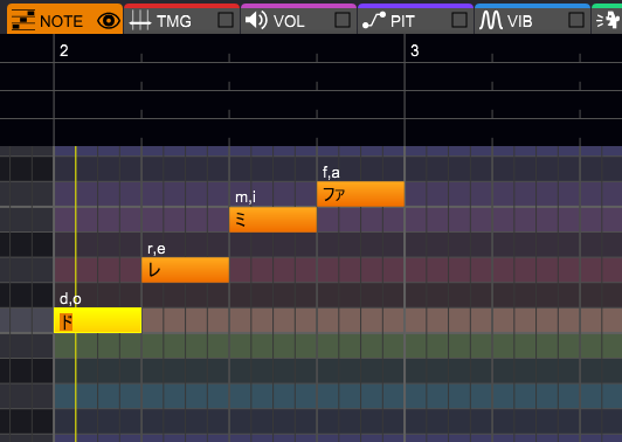

Double-click on a note to enter lyric syllable(s) for that note. Press Tab to move to the next note, or Shift+Tab to move to the previous note.

You can also enter English lyrics.

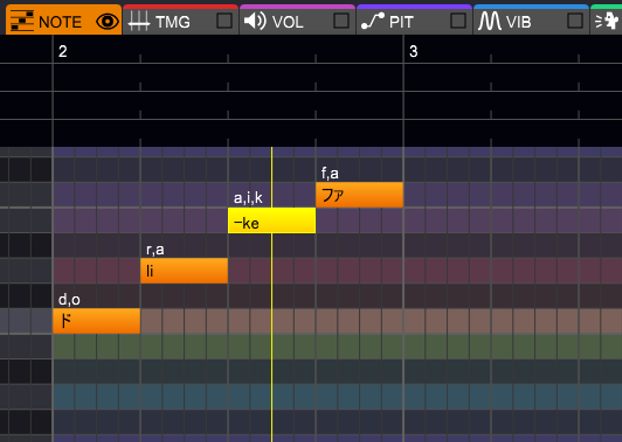

If you want one lyric syllable to stretch across multiple notes, add a hyphen to the syllable that follows a note.(Example: “li” + “-ke” => “like”)
By right-clicking on the piano roll and turning on "Auto Split English Lyrics," English words are automatically split by syllable and assigned to multiple notes.

Bulk Lyric Syllables Entry

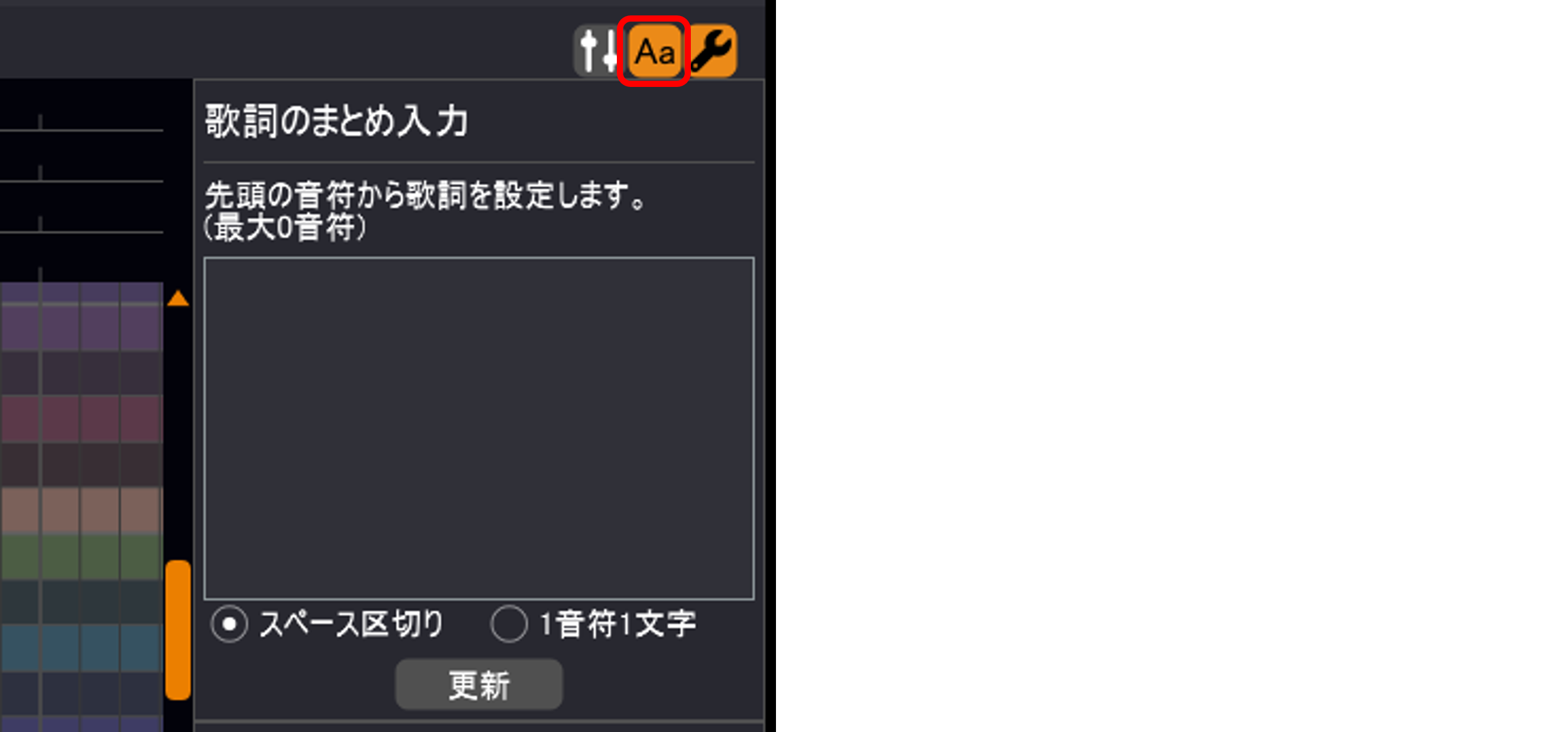

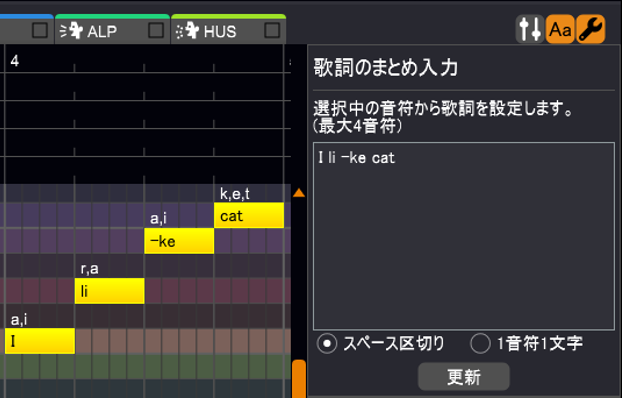

Clicking the “Bulk Lyrics Entry” button opens the “Bulk Lyrics Entry” panel.

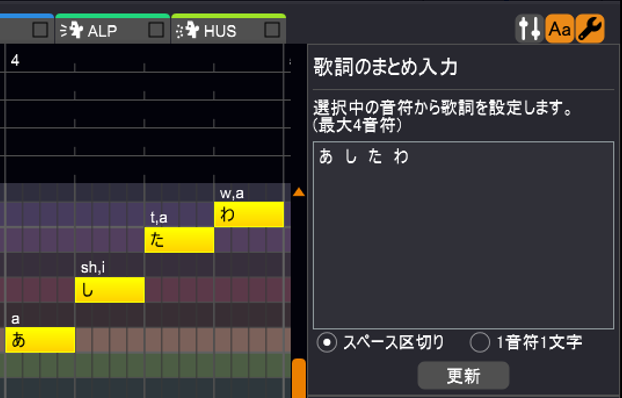

You can enter lyric syllables to be assigned to multiple notes at once.
If the “Separate with space” option is selected, each group of lyric syllables, separated by space, is assigned to one note.
If “One note, one character” is selected, each character/syllable is assigned to one note.

You can also enter English lyrics.
If you want one syllable to stretch across multiple notes, prepend a hyphen to the syllable that is stretched to the next note.

Special Symbols

Vowel drop

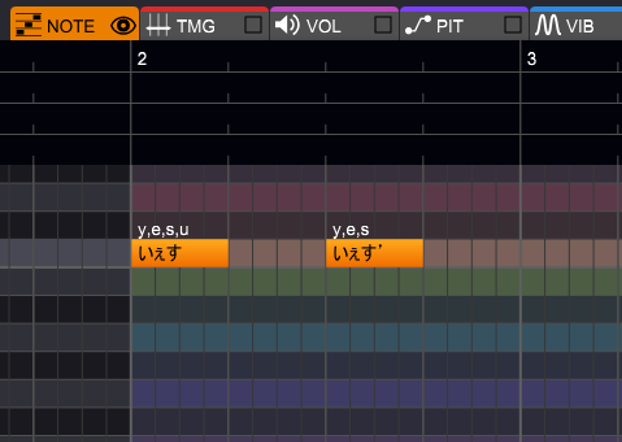

You can drop a vowel by adding full-width ’(apostrophe) after the lyric syllable.
For example, if the lyric syllables are vocalized as “y, e, s, u,” adding ’(y, e, s, u ’) causes the “u” to be dropped, and the lyric syllables are vocalized as “y, e, s”.

Falsetto
Indicate falsetto by including half-width “$”, full-width “$” or full-width “※” in the lyrics.

  • * Depending on the voice library and the pitch of the voice, it may not be easy to create a falsetto.

Other Special Symbols

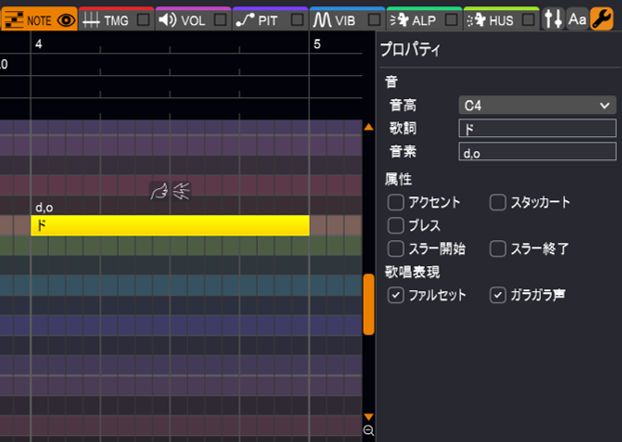

You can bring out each singer’s distinctive vocal characteristics by using “training labeling symbols.”
VoiSona achieves highly accurate voice libraries by training AI models with recorded data labeled with each voice provider’s singing style characteristics.
In VoiSona, you can add these labeling symbols to lyrics to bring out the special characteristics of the voice provider’s singing style.

  • * Depending on the voice library and its version, the lyrics, the pitch of the voice, etc., the desired characteristic may not be readily produced.
  • * Because labelling is a mechanism for improving the accuracy of the training model, there may be cases where the characteristic cannot be produced.
  • * Even if a vocal characteristic is not specified (shown as blank) for the voice library, entering a symbol may cause some changes in the synthesized voice.

Half-width “$”
Full-width “$”
Full-width “※”
Half-width “@”
Full-width “@”
Half-width “^”
Full-width “^”
Half-width “%”
Full-width “%”
Chis-AFalsettoRoughness
Sato SasaraFalsetto
KiruneFalsettoBounce-up pitchRoll r’sHead fall
AiSuuFalsettoBounce-up pitch
Chis-A [tʃíːseɪ]FalsettoRoughness
#kznFalsetto
Yuzuki Yukari ReiFalsetto
MYK-IVFalsettoBounce-up pitchWhisperRough
Futaba MinatoFalsettoBounce-up pitchBreathe out
Suzuki TsudumiFalsetto
Pepper
IAFalsettoBounce-up pitchSoft
IA ENGLISHFalsetto
OИEFalsetto

Phoneme Editing

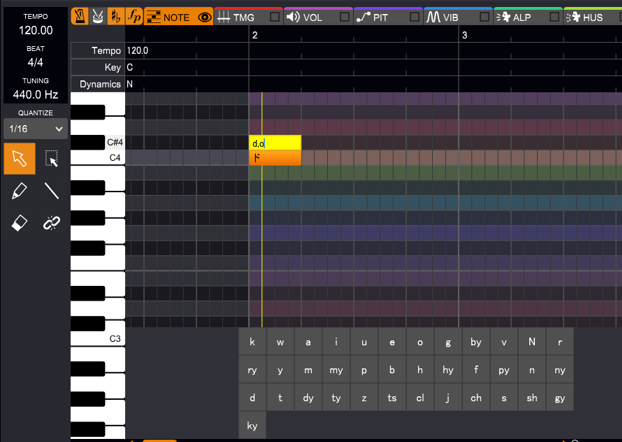

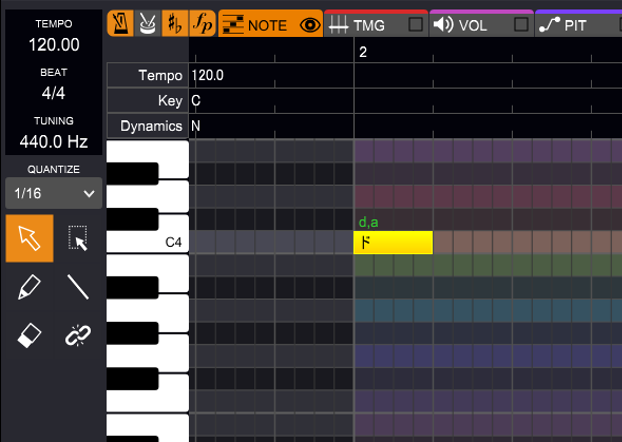

You can edit a phoneme sequence directly by double-clicking on the area of a phoneme you wish to edit.

Ex. d, o 🡪 d, a

The edited phoneme sequence is shown in green.

When editing phonemes, the Phoneme Palette will appear.
By clicking on a phoneme in the palette, you can enter the phoneme.

Japanese phonemes

あ, ア
a
い, イ
i
う, ウ
u
え, エ
e
お, オ
o
か, カ
k,a
き, キ
k,i
く, ク
k,u
け, ケ
k,e
こ, コ
k,o
さ, サ
s,a
し, シ
sh,i
す, ス
s,u
せ, セ
s,e
そ, ソ
s,o
た, タ
t,a
ち, チ
ch,i
つ, ツ
ts,u
て, テ
t,e
と, ト
t,o
な, ナ
n,a
に, ニ
n,i
ぬ, ヌ
n,u
ね, ネ
n,e
の, ノ
n,o
は, ハ
h,a
ひ, ヒ
h,i
ふ, フ
f,u
へ, ヘ
h,e
ほ, ホ
h,o
ま, マ
m,a
み, ミ
m,i
む, ム
m,u
め, メ
m,e
も, モ
m,o
や, ヤ
y,a
ゆ, ユ
y,u
いぇ, イェ
y,e
よ, ヨ
y,o
ら, ラ
r,a
り, リ
r,i
る, ル
r,u
れ, レ
r,e
ろ, ロ
r,o
わ, ワ
w,a
ゐ, ヰ
i
ゑ, ヱ
e
を, ヲ
o
が, ガ
g,a
ぎ, ギ
g,i
ぐ, グ
g,u
げ, ゲ
g,e
ご, ゴ
g,o
ざ, ザ
z,a
じ, ジ
j,i
ず, ズ
z,u
ぜ, ゼ
z,e
ぞ, ゾ
z,o
だ, ダ
d,a
ぢ, ヂ
j,i
づ, ヅ
z,u
で, デ
d,e
ど, ド
d,o
ば, バ
b,a
び, ビ
b,i
ぶ, ブ
b,u
べ, ベ
b,e
ぼ, ボ
b,o
ぱ, パ
p,a
ぴ, ピ
p,i
ぷ, プ
p,u
ぺ, ペ
p,e
ぽ, ポ
p,o
きゃ, キャ
ky,a
きゅ, キュ
ky,u
きぇ, キェ
ky,e
きょ, キョ
ky,o
しゃ, シャ
sh,a
しぃ, シィ
s,i
しゅ, シュ
sh,u
しぇ, シェ
sh,e
しょ, ショ
sh,o
ちゃ, チャ
ch,a
ちゅ, チュ
ch,u
ちぇ, チェ
ch,e
ちょ, チョ
ch,o
てゃ, テャ
ty,a
てぃ, ティ
t,i
てゅ, テュ
ty,u
てょ, テョ
ty,o
にゃ, ニャ
ny,a
にゅ, ニュ
ny,u
にぇ, ニェ
ny,e
にょ, ニョ
ny,o
ひゃ, ヒャ
hy,a
ひゅ, ヒュ
hy,u
ひぇ, ヒェ
hy,e
ひょ, ヒョ
hy,o
みゃ, ミャ
my,a
みゅ, ミュ
my,u
みぇ, ミェ
my,e
みょ, ミョ
my,o
りゃ, リャ
ry,a
りゅ, リュ
ry,u
りぇ, リェ
ry,e
りょ, リョ
ry,o
ヴゃ, ヴャ
by,a
ヴゅ, ヴュ
by,u
ヴょ, ヴョ
by,o
ぎゃ, ギャ
gy,a
ぎゅ, ギュ
gy,u
ぎぇ, ギェ
gy,e
ぎょ, ギョ
gy,o
じゃ, ジャ
j,a
じゅ, ジュ
j,u
じぇ, ジェ
j,e
じょ, ジョ
j,o
びゃ, ビャ
by,a
びゅ, ビュ
by,u
びぇ, ビェ
by,e
びょ, ビョ
by,o
ぴゃ, ピャ
py,a
ぴゅ, ピュ
py,u
ぴぇ, ピェ
py,e
ぴょ, ピョ
py,o
でゃ, デャ
dy,a
でゅ, デュ
dy,u
でぇ, デェ
dy,e
でょ, デョ
dy,o
くぁ, クァ
k,w,a
くぃ, クィ
k,w,i
くぅ, クゥ
k,w,u
くぇ, クェ
k,w,e
くぉ, クォ
k,w,o
ぐぁ, グァ
g,w,a
ぐぃ, グィ
g,w,i
ぐぅ, グゥ
g,w,u
ぐぇ, グェ
g,w,e
ぐぉ, グォ
g,w,o
ぐゎ, グヮ
g,w,a
うぃ, ウィ
w,i
うぇ, ウェ
w,e
うぉ, ウォ
w,o
すぃ, スィ
s,i
つぁ, ツァ
ts,a
つぃ, ツィ
ts,i
つぇ, ツェ
ts,e
つぉ, ツォ
ts,o
とぅ, トゥ
t,u
ふぁ, ファ
f,a
ふぃ, フィ
f,i
ふぇ, フェ
f,e
ふぉ, フォ
f,o
ずぃ, ズィ
z,i
どぅ, ドゥ
d,u
ヴぁ, ヴァ
v,a
ヴぃ, ヴィ
v,i
ヴぅ, ヴゥ
v,u
ヴぇ, ヴェ
v,e
ヴぉ, ヴォ
v,o
ん, ン
N
っ, ッ
cl

English phonemes

The relationship between phonemes and IPA symbols in English is as follows.
PhonemeIPA symbol
aaɑ
aeæ
axə, ɜ
axrər (ɚ), ɜr (ɝ)
ahʌ
aoɔ
aw
ay
bb
ch
dd
dhð
ehe, ɛ
eyeɪ, ɛɪ
ff
gg
hhh
ihɪ
iyi
jh
kk
ll
mm
nn
ngŋ
ow
oyɔɪ
pp
rr
ss
shʃ
tt
thθ
uhʊ
uwu
vv
ww
yj
zz
zhʒ
ttFlapping t (better, little etc.)
ddFlapping d (middle etc.)

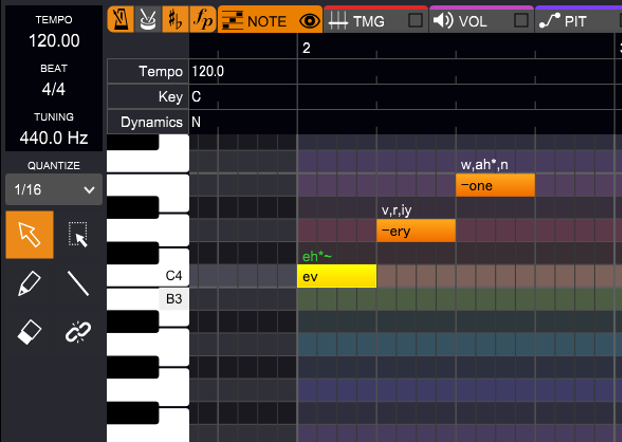

In English, the stress information for words is represented by placing the following symbols after a vowel:
・Primary stress: *~
・Secondary stress: *
However, in singing, specifying the stress often does not significantly alter the synthesized waveform.

Other properties

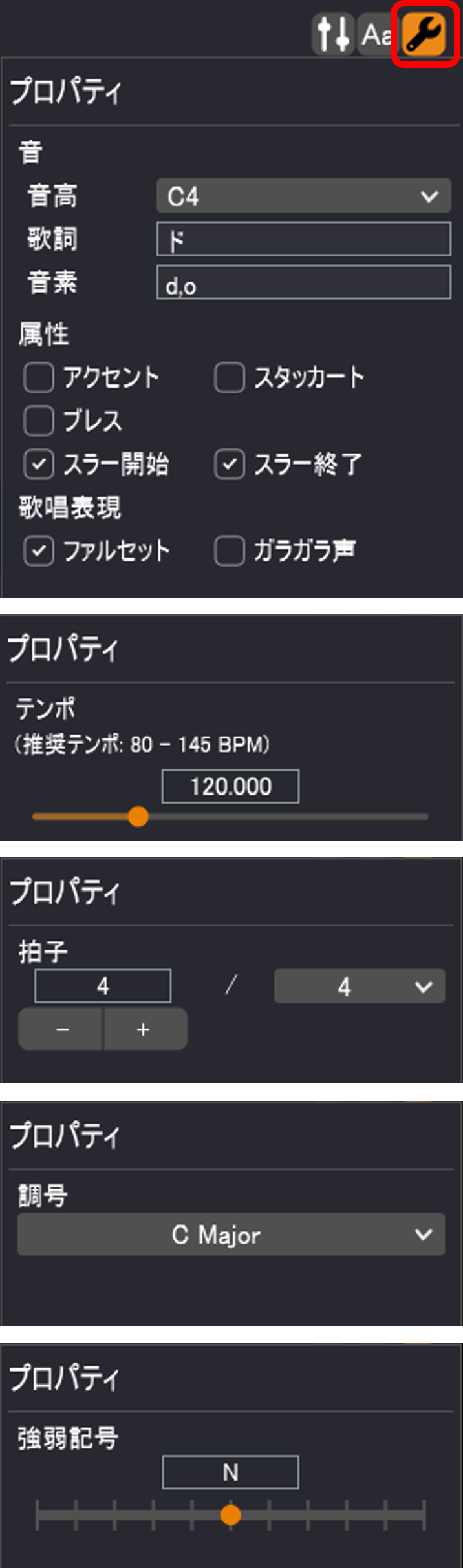

Clicking the “Property” button opens the ”Property” panel.
You can set various properties related to selected note, tempo, beat, key signature, and dynamics symbols (some settings can also be applied with shortcut keys).
Setting a slur is especially effective when you want multiple notes to be sung smoothly connected.
* Depending on the voice library and the score, it may not be easy to produce the desired accent, staccato, slur or falsetto.

Bulk Selection

To adjust notes, timing, and other parameters all at once, select the Bulk Selection tool.
With this tool, you can copy or delete all parameters at once.

Measure Editing

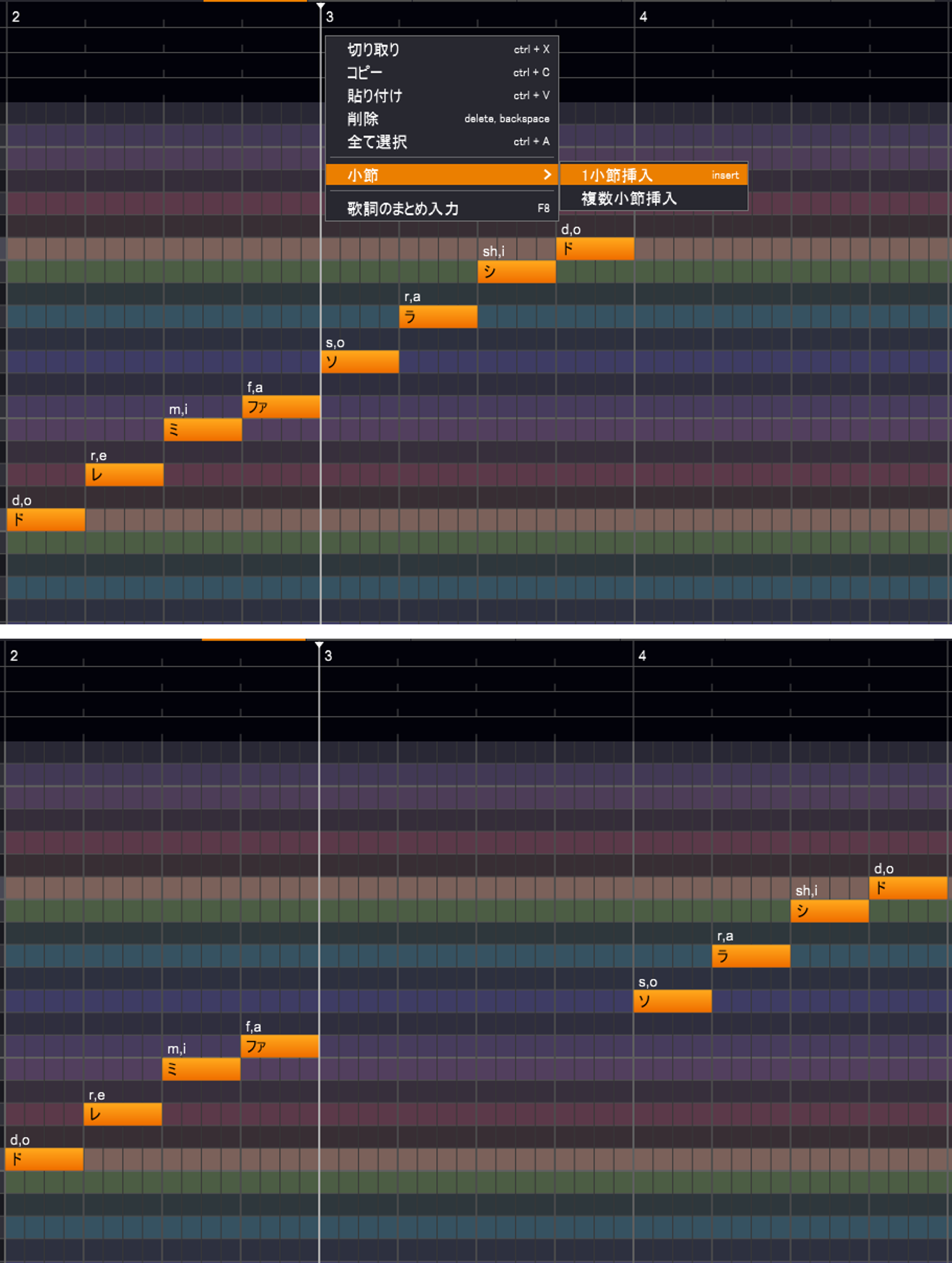

By right-clicking on the piano roll and selecting "Measure" → "Insert Measure"/"Insert Measures", any number of measures can be inserted based on the playback position.

Parameter Adjustments

Explanation of Tabs

・TMG: Timing adjustment
・VOL: Volume adjustment. Unit is decibels (dB).
・PIT: Pitch adjustment. Unit is Hertz (Hz).
・VIB: Vibrato adjustment
・ALP: Voice quality adjustment. The lower the value, the more the voice sounds like a child’s. The higher the value, the more the voice sounds like an adult’s.
・HUS: Degree of huskiness in voice. The higher the value, the more husky the voice.

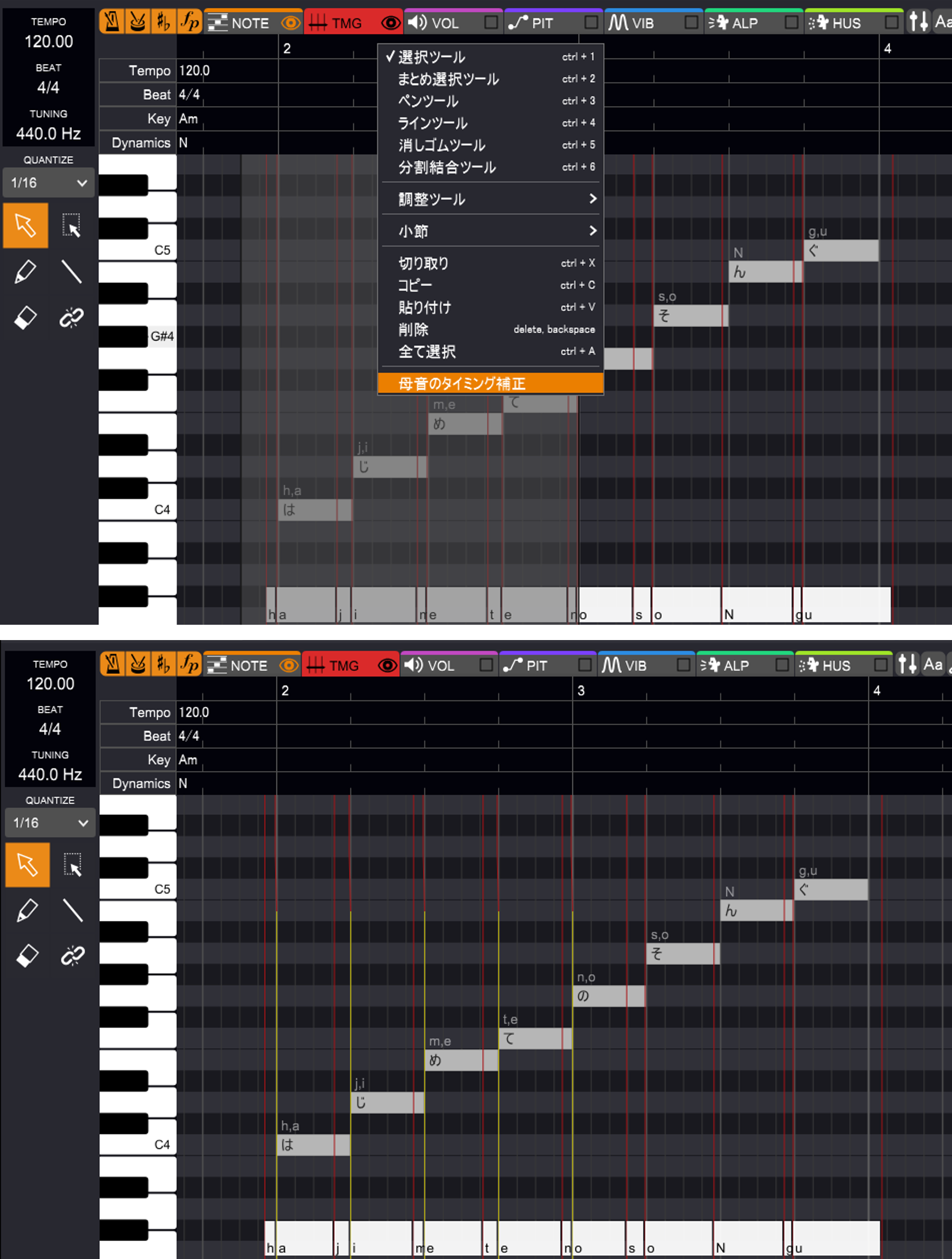

Timing parameters adjustment

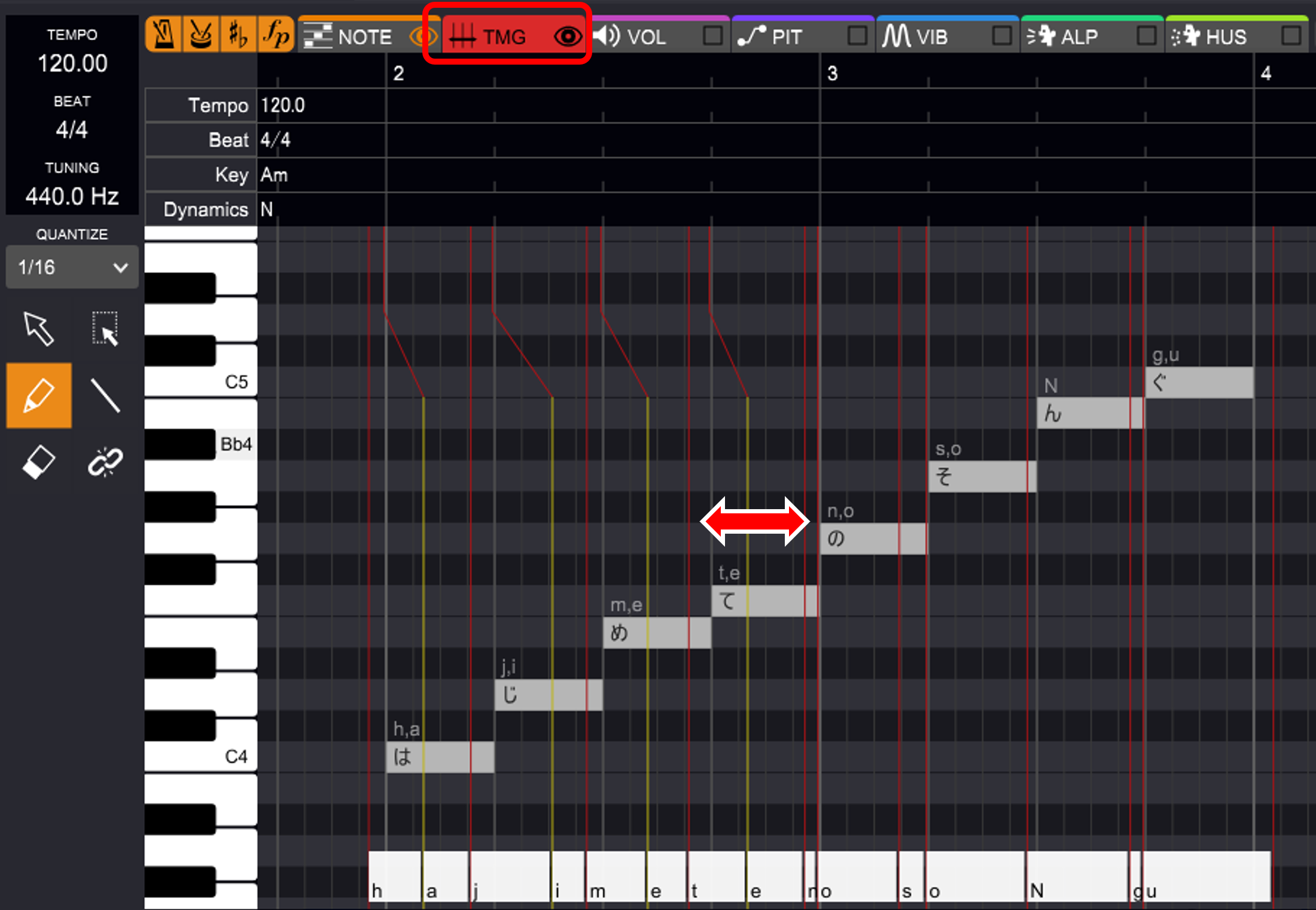

Adjust when a phoneme starts and ends.

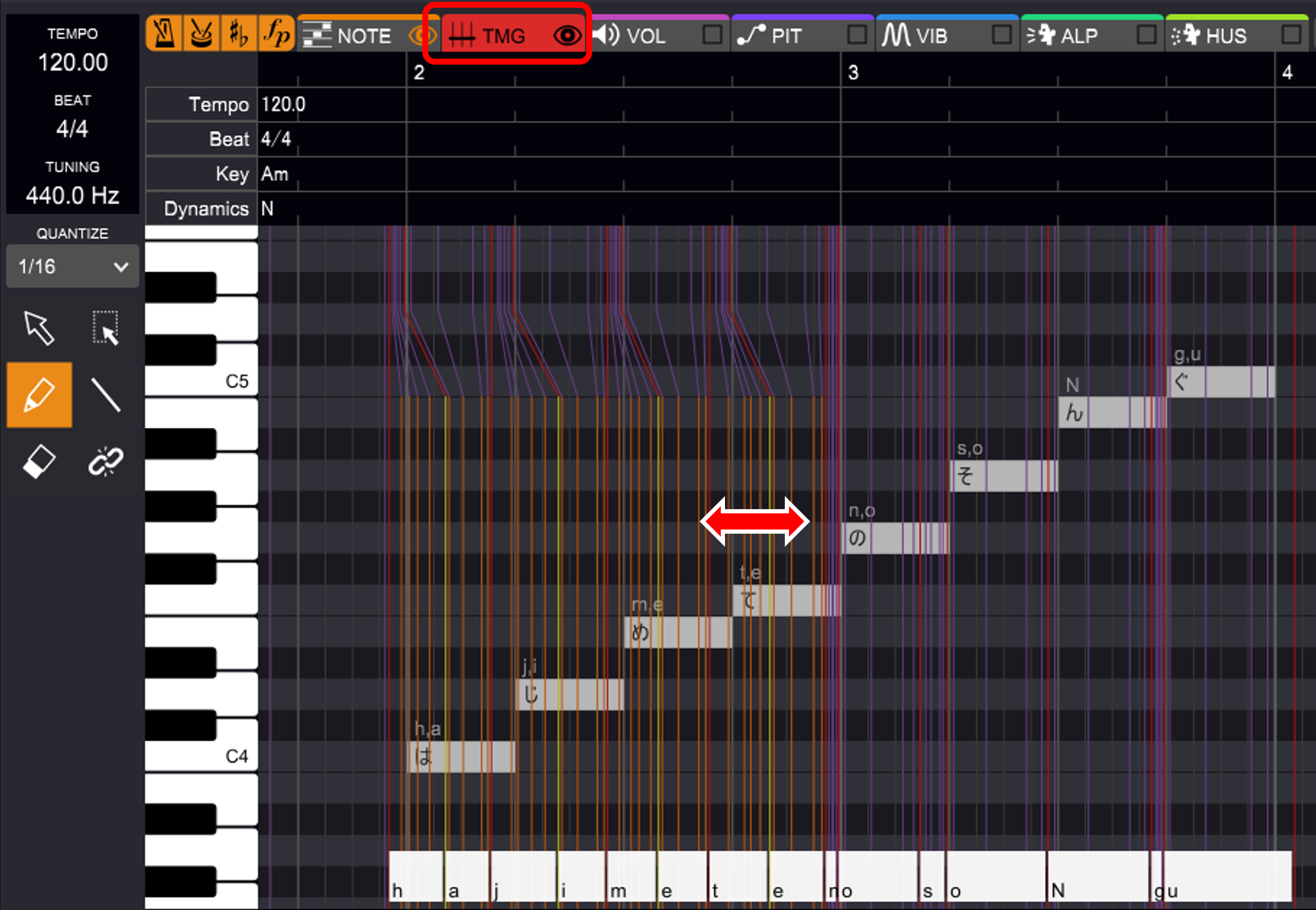

For even finer granularity, open the Editor tab in the Preferences and select the Timing Status Line checkbox.*It may be different to tell the effects of timing adjustment in a unit finer than a phoneme.

Vibrato Parameter Adjustment

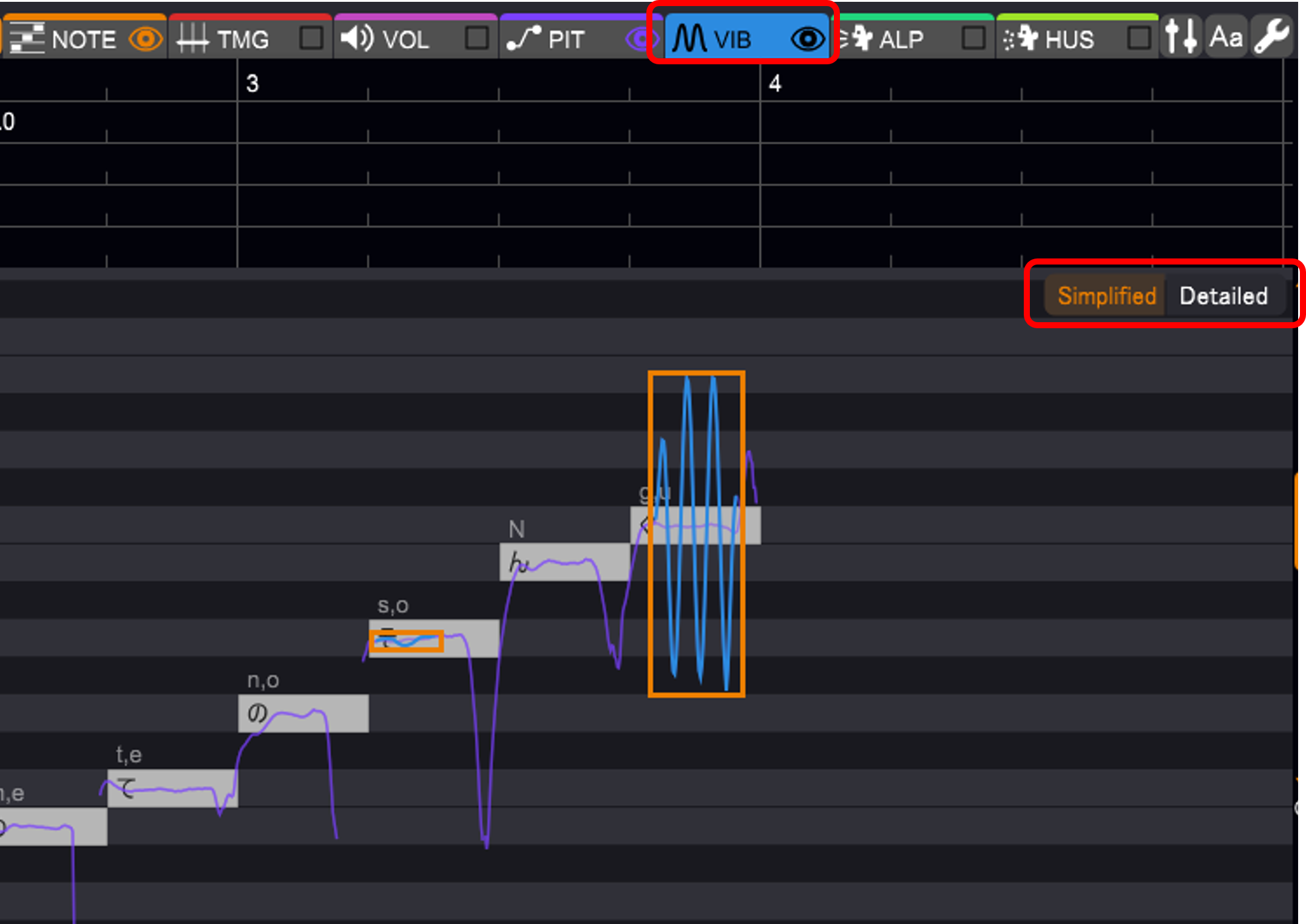

There are two modes for adjusting vibrato: Simplified and Detailed.
Switch the mode using the button in the upper right corner of the window.

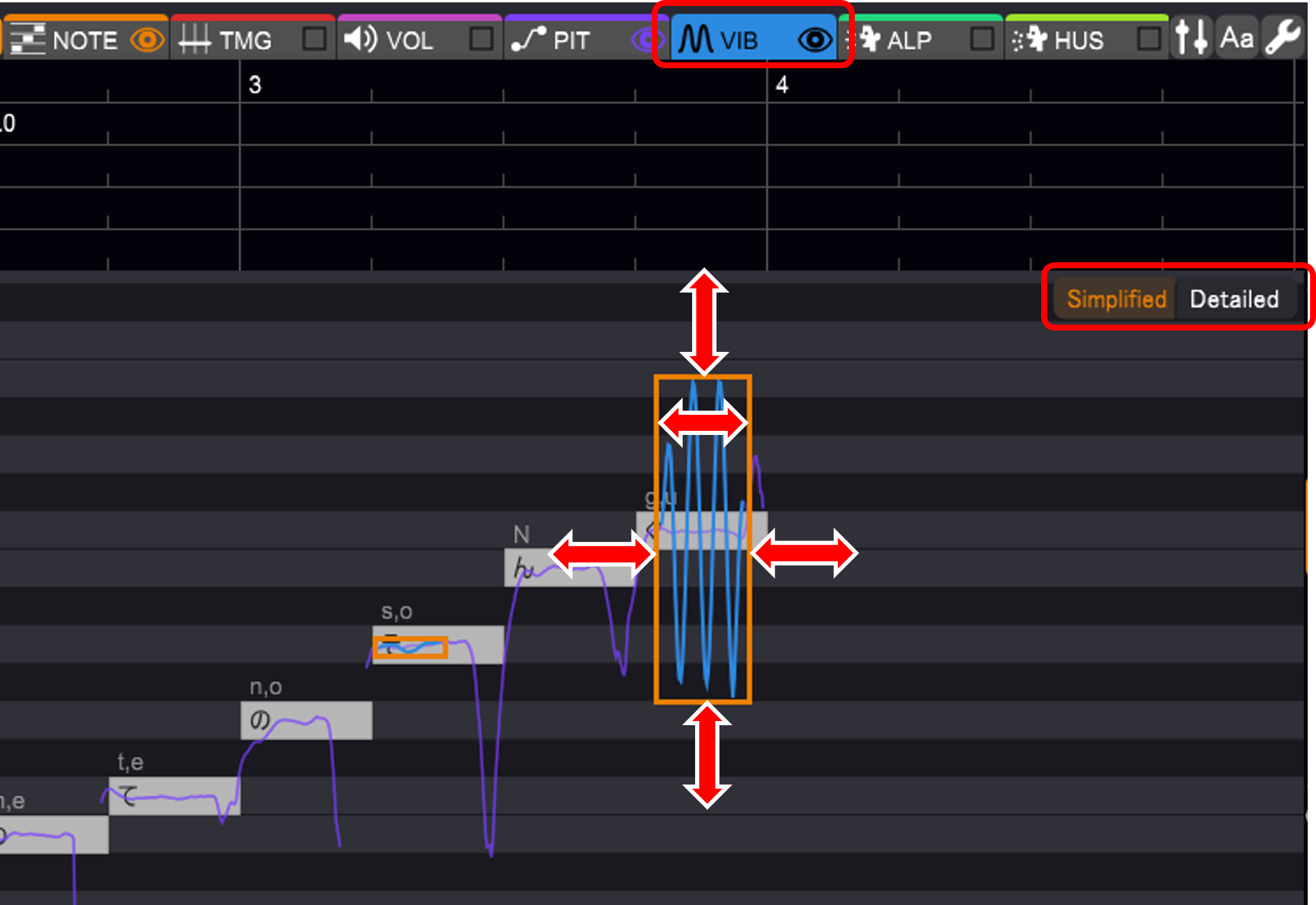

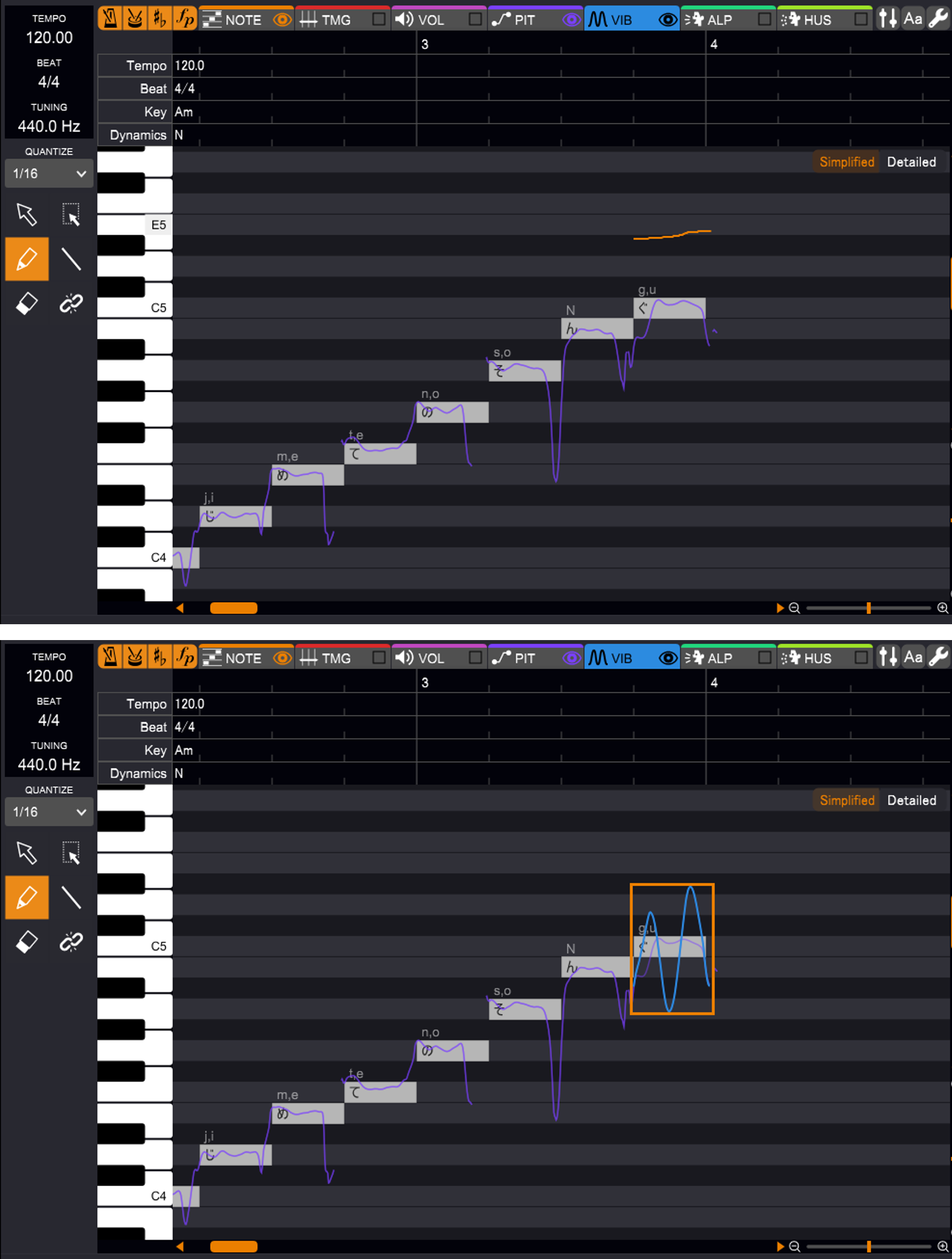

In Simplified mode, the section where vibrato is applied is indicated by a frame.

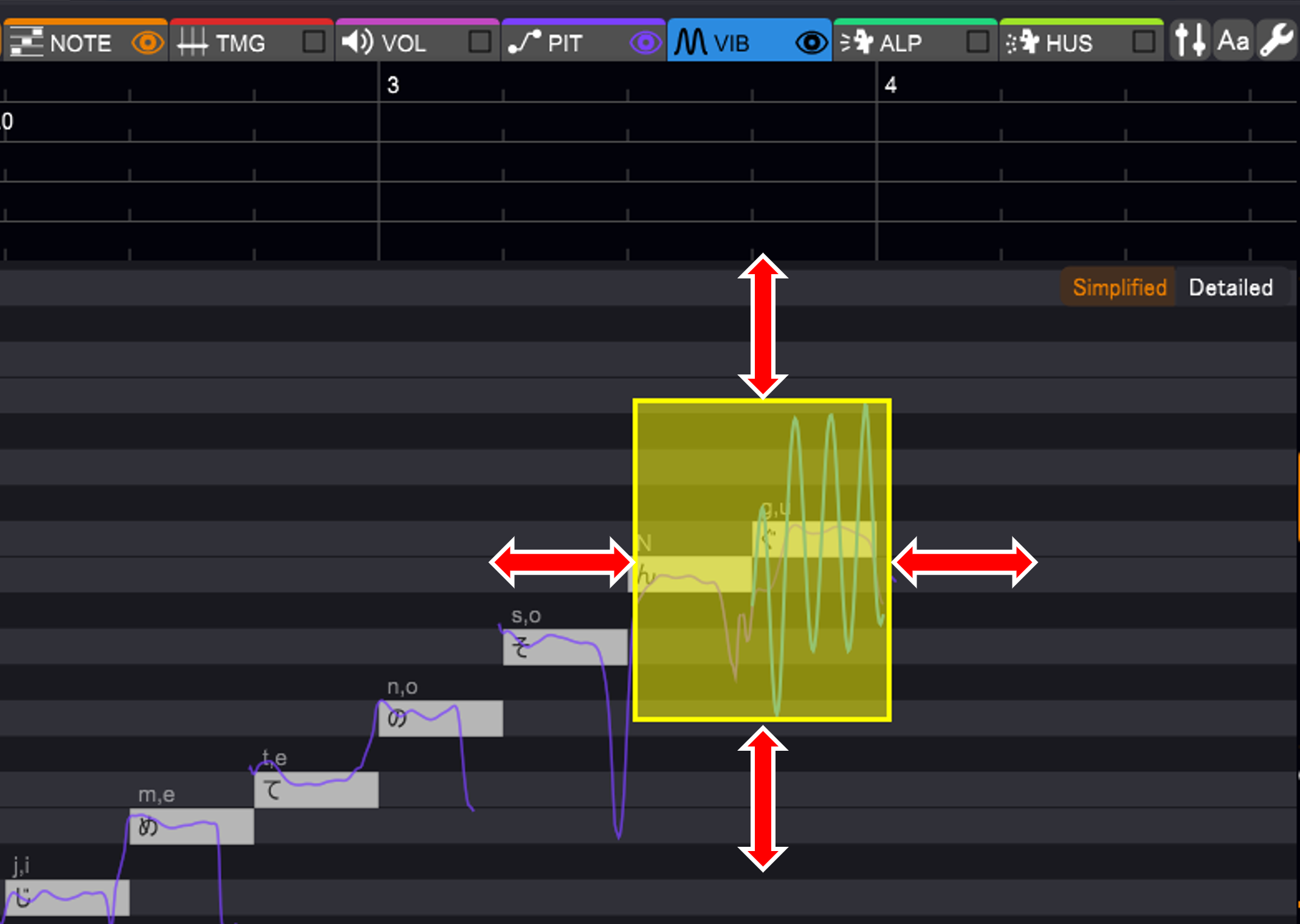

You can adjust the vibrato by adjusting this frame.

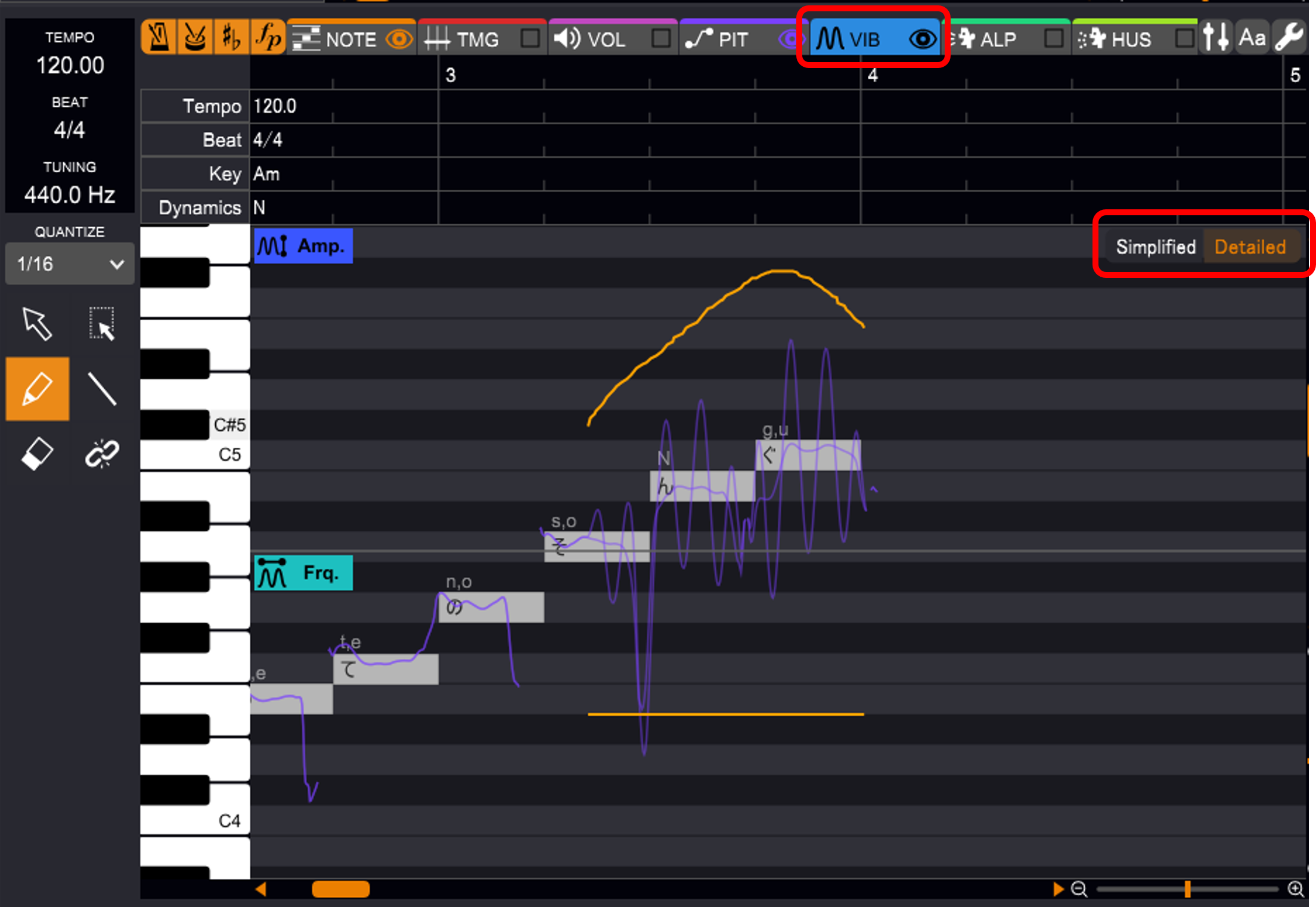

In Detailed mode, you can adjust AMP (amplitude – unit: Cent; 100Cent for half steps) in the top half of the window and FRQ (frequency – unit: Hz) in the bottom half of the window.
Each parameter is adjusted in the same manner.

Other Parameter Adjustments

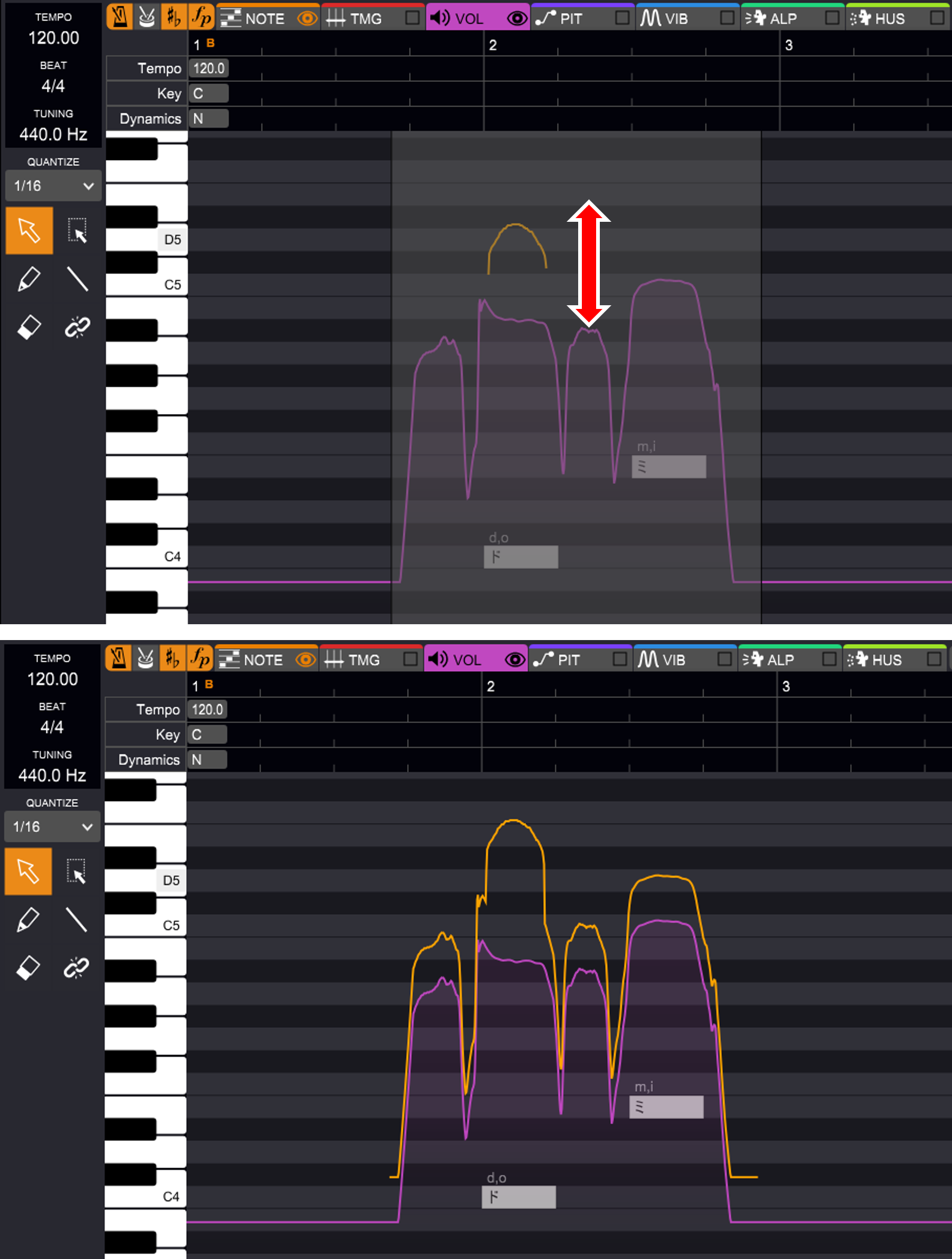

You can adjust VOL (volume), PIT (pitch), ALP (voice quality), and HUS (huskiness) parameters.

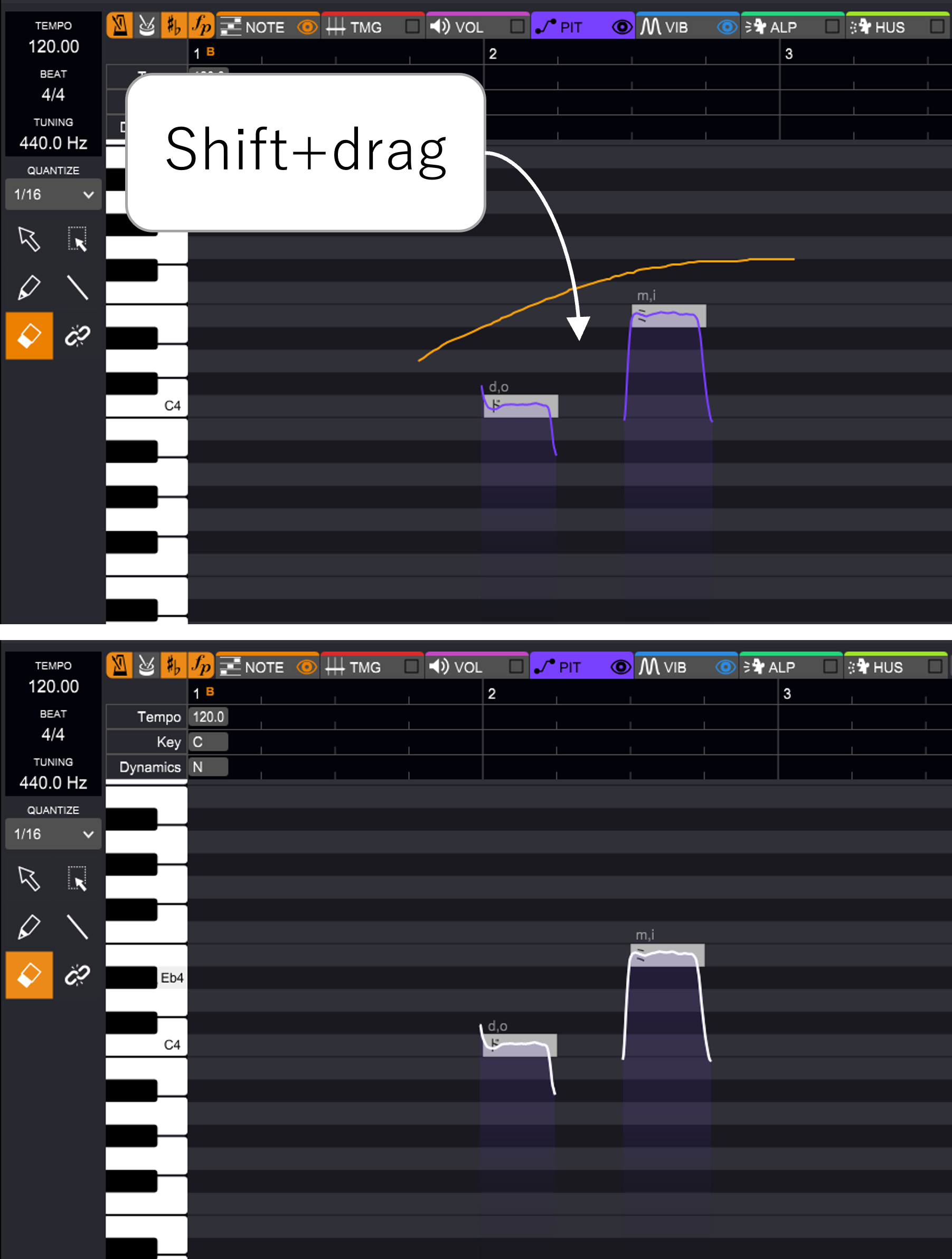

In the Pitch and Vibrato Amplitude/Period adjustment windows, you can hold down the Shift key and drag to delete (disable) the original values.

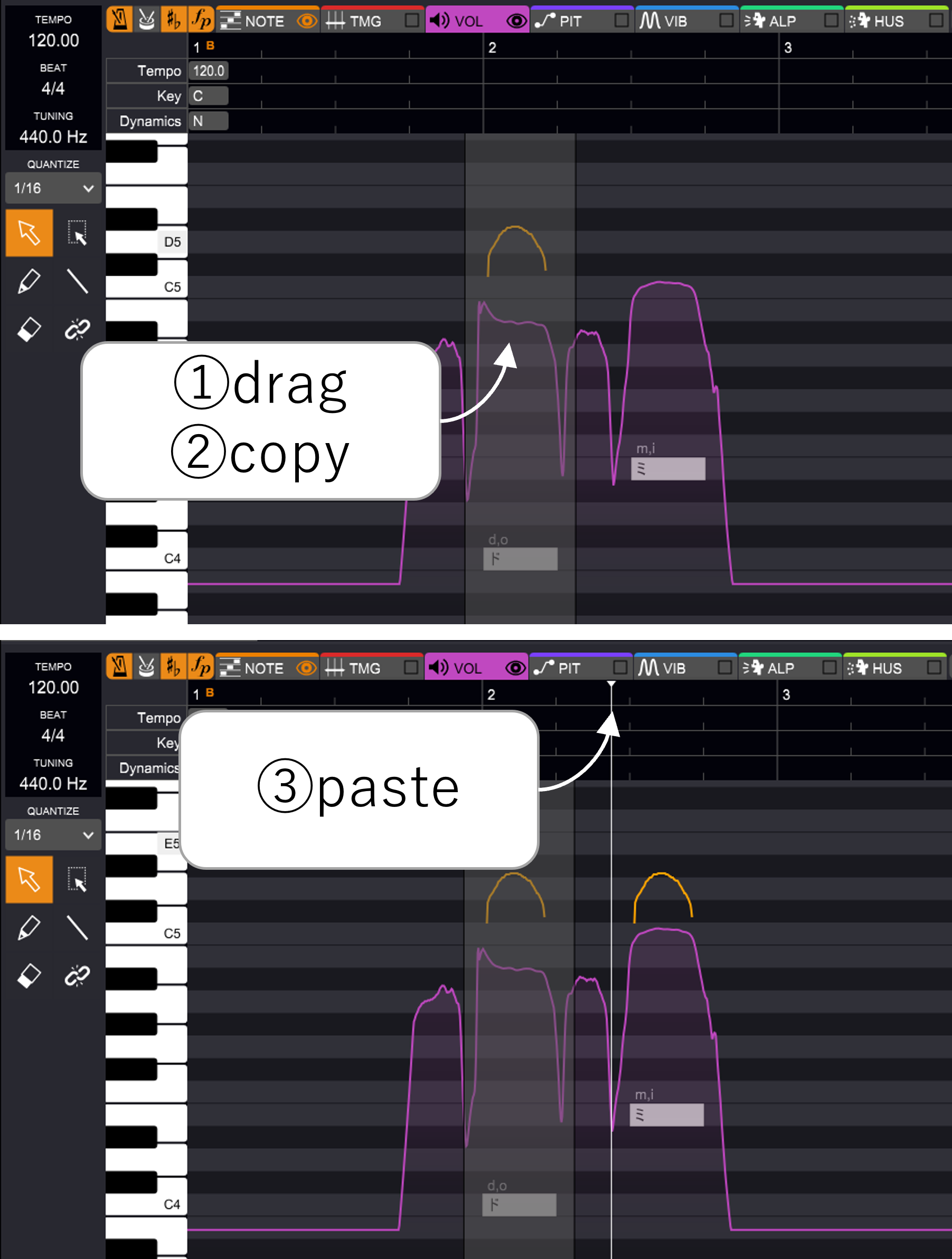

You can copy parameters as follows.

Need Help?

Frequently Asked Questions (FAQ)

Q. Can I use VoiSona Voice Libraries on CeVIO AI and CeVIO Creative Studio?
No, Voice Libraries released for VoiSona can be used only on VoiSona.
Due to popular request, we are considering cross-platform compatibility of Voice Libraries between VoiSona and sister brand CeVIO.

Q. Can I change my login password?
To change your login password, click the "Change Password" link on the account page.

Q. I want to delete my VoiSona account.
Please contact us using the Contact Us page.

Q. I cannot download a voice library.
See the “Using VoiSona as Standalone App” > “Select Voice Library” section on this webpage and try again.

Q. Selecting a voice library failed.
Delete the voice library, re-download it, and try again.

Q. Shortcut keys do not work.
Keyboard shortcuts may not work on Apple silicon-equipped Macs when running VoiSona on Logic Pro or GarageBand.
Running the DAW in Rosetta mode works.
In addition, if you are using VoiSona as a plug-in on your DAW, and the DAW has shortcut keys that are the same as VoiSona’s, the DAW’s shortcut keys may take priority and negate the VoiSona’s shortcut keys.
In such a case, open VoiSona’s Preferences, go to the Shortcuts tab, and change the affected shortcuts.

Q. Keyboard shortcuts using the Alt key do not work.
In some DAWs (e.g. Studio One), keyboard shortcuts using the Alt key do not seem to work with plug-ins.
In such a case, open VoiSona’s Preferences, go to the Shortcuts tab, and change Alt key shortcuts to keystrokes that do not require the Alt key.

Q. Is it possible to enter extremely short notes such as a sixty-fourth note?
You can only enter up to a thirty-second note. Use the Timing (TMG) adjustment window to edit vocal timing in finer detail.
If you turn ON the eye icon on the volume (VOL) tab, the volume line is displayed. This makes it easier to make TMG adjustments.

Q. The maximum number of activations is reached when I try to use GarageBand.
You can activate VoiSona on up to two PCs, and you can use multiple DAWs on one PC. However, unlike other DAWs, GarageBand is recognized as a separate PC.
To resolve this issue, go to your VoiSona account webpage and deactivate registered PCs before launching GarageBand.

Q. I can’t use a downloaded voice library on GarageBand.
Change macOS privacy settings: Apple menu > System Preferences, then click Security & Privacy > General. In Allow downloaded applications to run, choose allow dylib that begin with ts_.
Launch GarageBand again after changing these settings.Although dylibs are signed, GarageBand has stricter security than other DAWs. Permission is required even for signed dylibs.
You may need to follow these steps again when you download and use a new voice library on GarageBand.

Q. Is it possible to specify the playback start position in the Song Editor?
Yes, you can start playback from a specified position with the following steps.
First, click on the Ruler on the Song Editor window (the area where the dynamic and key signatures are displayed) to specify the playback start position.
Next, click the Playback button on the left side of the Song Editor window. The audio will play from that position.
However, in many DAWs the Song Editor window is not linked to the DAW’s playback start position. When you play back on the DAW side, the position you specified in the Song Editor window may be ignored (even if you start playback by using the space key).

Q. How do I cancel my voice library subscription?
Please turn off the auto-renewal of your voice library subscription.
You can turn off auto-renewal by going to the license page (login required) and clicking the Cancel Reservation button for the voice library subscription.
Once auto-renewal is turned off, the license will change to show “Status: Subscription Cancellation Reserved” and will be cancelled when the subscription expires.
You can continue to use the voice library until the expiration date.

Q. I am experiencing activation failure when using both "VoiSona" and "VoiSona Talk".
Due to an update, the method for acquiring the hardware information necessary for activation has changed.
If you are using both "VoiSona" and "VoiSona Talk", we kindly ask you to update both software.
If activation fails after updating, please deactivate the old activation information on your account page.

Q. How can I use the "Waveform Generator Prototype A"?
The experimental feature "Waveform Generator Prototype A," available exclusively in the Japanese song voice library "Chis-A," has been discontinued as its role concluded with the release of "Chis-A" version 2.0. Therefore, the functionality was removed in the version following 1.8.2 of the Song Editor.
In order to reproduce voice waveforms created using the "Waveform Generator Prototype A," the Song Editor version 1.8.2 can be downloaded for the time being from the link at the bottom of the download page.
